Audi 3.0T B9 Kolfiber Luftfilterkit / Sportluftfilter (S4 & S5) Integrated Engineering

Artnr:
igeIEINCK3
|
(0 omdömen)
Luftfilter kit i kolfiber från IE har 37% bättre flöde än original och ger friar upp för mer insugsljud.
15479 KR

Lägg i kundvagnen
Uppskattad leveranstid  Beställningsvara
  • Produktbeskrivning

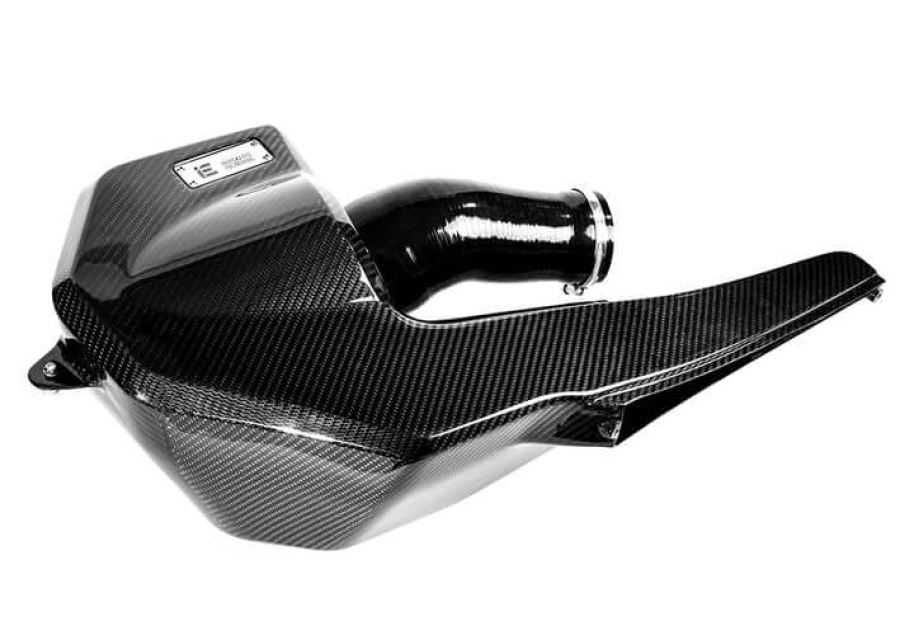

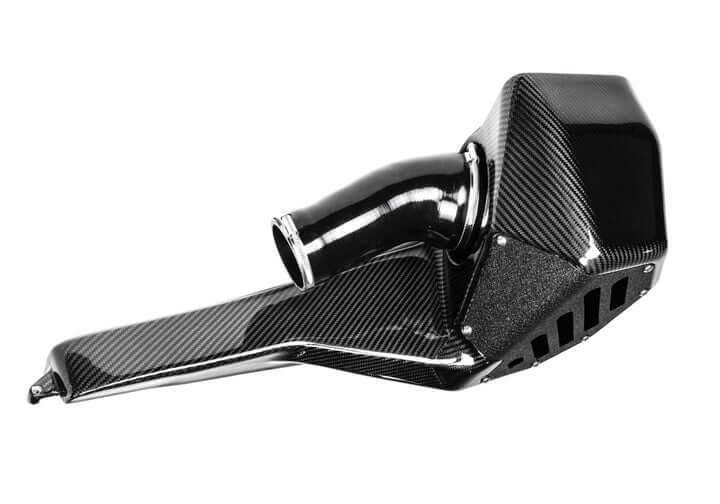

  • IE Carbon Fiber Intake System For Audi B9 S4 & S5 3.0T

    IEs carbon fiber intake system flows 37% more than the stock intake & inlet on the factory turbocharger and up to 61% more on hybrid turbo setups. This increase translates to a maximized flow rate that significantly improves turbo & engine efficiency resulting in power gains of up to 19HP & 21ft-lbs on tuned engines! IEs engineers took a "no expense spared" approach to design the ultimate intake system solution that delivers on looks, fit, and, most importantly -power!

    • ONE-PIECE CARBON FIBER CONSTRUCTION
    • UP TO +19HP & 21TQ POWER YOU CAN FEEL
    • FLOW OPTIMIZED VELOCITY STACK MOTORSPORT DESIGN

    LEADING FEATURES

    Take your driving experience to the next level with features that maximize flow rates, increase power, and improve sound for your turbocharged 3.0T engine.

    • High-gloss genuine carbon fiber construction
    • Reliable and seamless 1-piece design
    • Optional cast turbo inlet for a complete (and massive) air system
    • Up to 19HP & 21ft-lbs over stock (with IE turbo inlet)
    • Flow 37% more than the stock intake system
    • Flow 61% more than stock on hybrid turbo setups
    • Enhanced turbo & engine sound
    • Maximized turbo & engine efficiency
    • Factory style mounts
    • Stainless hardware
    • Multi-ply silicone with stop-flat edges
    • High-quality clamps
    • Powder-coated aluminum bottom plate

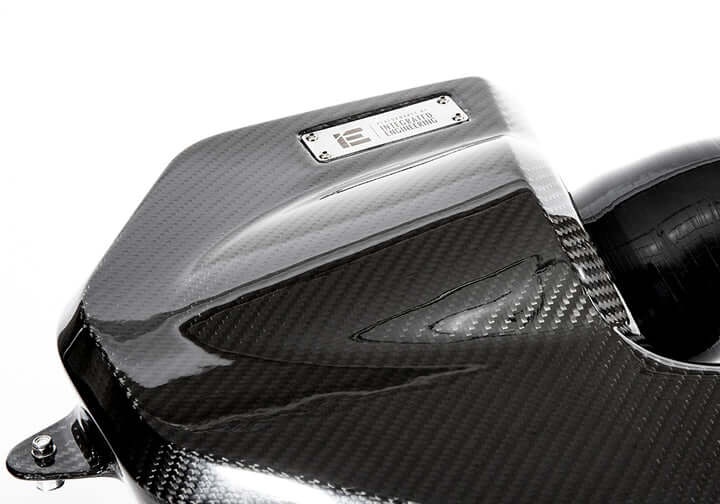

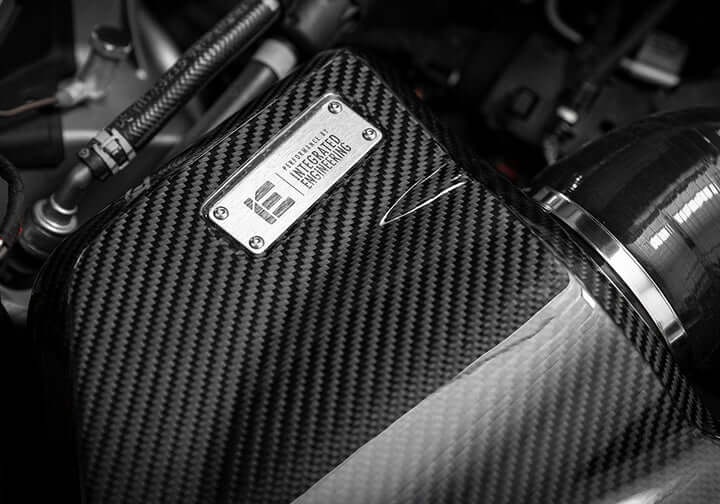

    • Stainless laser-etched logo plate

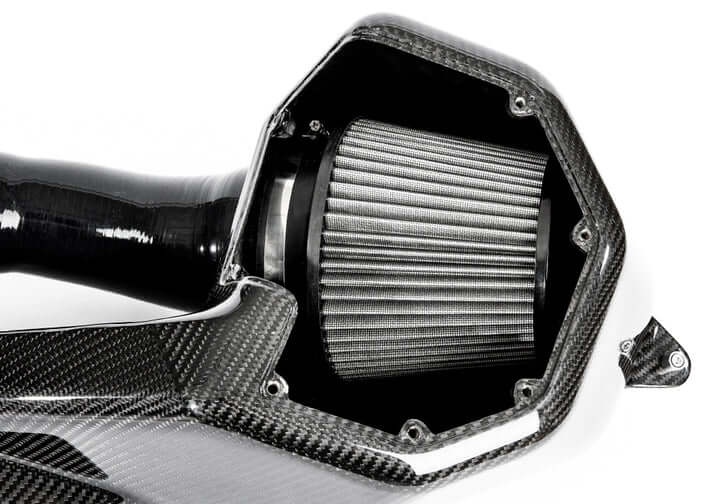

    • 5" pleated cotton filter

    OPTIONAL TURBO INLET PIPE

    Upgrade your intake with our optional cast turbo inlet for the most performance available from an intake system. This removes the significant airflow restriction from the small plastic stock inlet and maintains the largest size possible from the intake to the turbocharger. This combination increases flow from 11.52% (intake only) up to 61.49% over the stock intake and turbo inlet! Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.

    CARBON FIBER - MORE THAN STYLE

    A large internal volume is required to maximize airflow. Using carbon fiber allows our engineers to create complex shapes and angles that are impossible to achieve with sheet metal bends. This manufacturing style utilizes every millimeter available in the engine bay, providing ample air supply and smooth delivery.

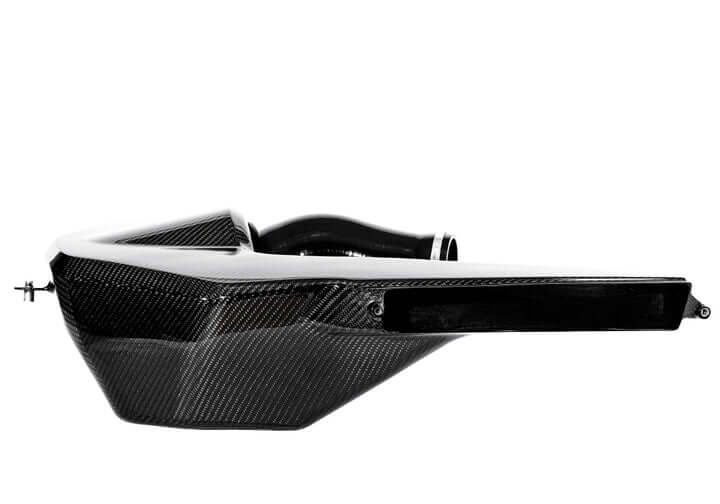

    SEAMLESS DESIGN

    The full carbon 1-piece airbox looks stunning while also eliminating all chances of air leaks, finicky install, rubbing noises, or parts working loose over time as found on typical multi-peace airbox designs.

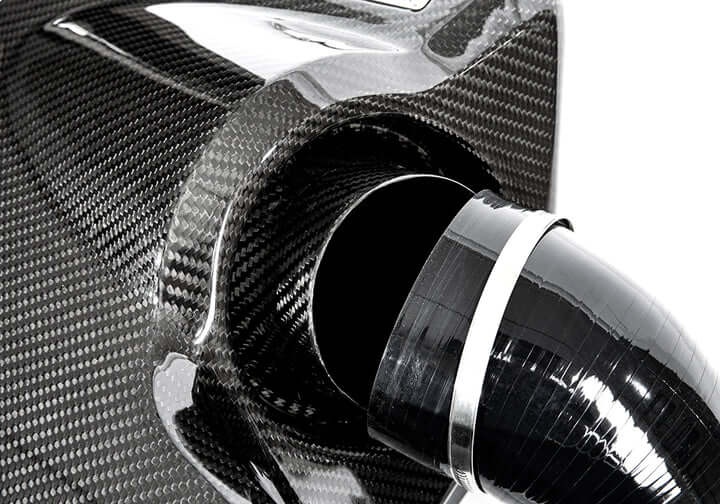

    BUILT-IN VELOCITY STACK

    By incorporating a professional motorsport-style velocity stack into the airbox design, airflow is channeled from the sizeable internal airbox volume into the turbocharger as quickly as possible. The bellmouth shape creates a very high inertia flow from the massive filter with very low drag or power-robbing turbulence.

    MULTIPLE PRESSURE ZONES

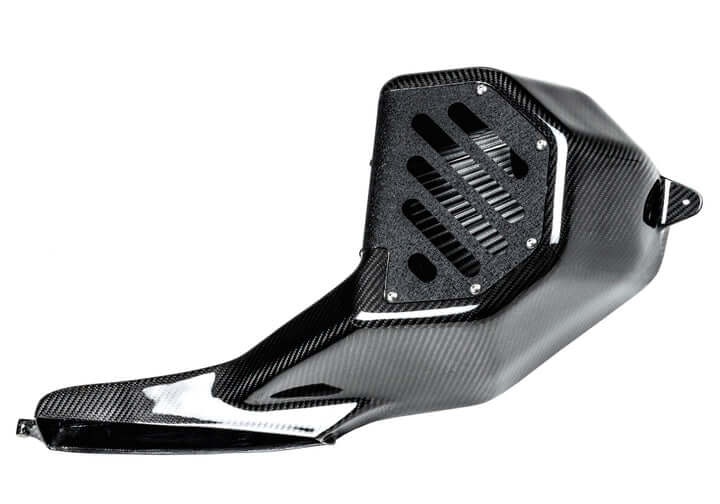

    Engineered to support any power level, the intake takes advantage of multiple air supply avenues. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the bottom plate louvers pull extra required air as needed from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.

    UNIQUE SOUND

    You drive a flagship S model Audi with a 6 cylinder turbocharged engine -sound like one! The factory intake kills any engine sound to meet requirements for everything but fun. By upgrading to an IE intake system, you are taking full advantage of a performance design, including the turbocharger spool, engine throttle, and diverter valve sounds that come along with it. The unique velocity stack and bottom louver design create a tuned engine note that sounds classy yet powerful at the same time. This sound level is not heard through other brand closed box intakes and is a much more refined sound than found with open element style intakes.

    HYBRID TURBO READY

    Have plans for a bigger turbo? Your IE intake and turbo inlet will make the process of upgrading to a hybrid turbo a simple bolt-in job. Our cast turbo inlet design utilizes CNC-machined and o ring sealed adapter rings to fit either the stock or a variety of aftermarket turbos without hassle. The turbo inlet always adapts down to the turbo to not introduce any restrictions and maintain the largest size possible when upgrading turbos. Hybrid turbo adapter rings are sold separately from the turbo inlet upgrade.

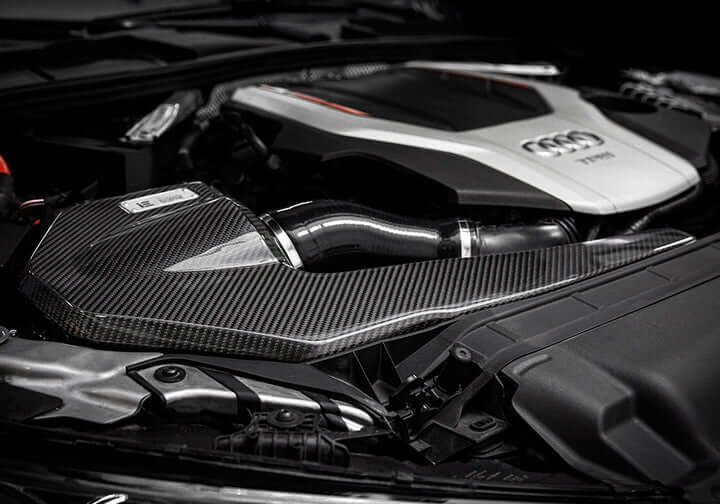

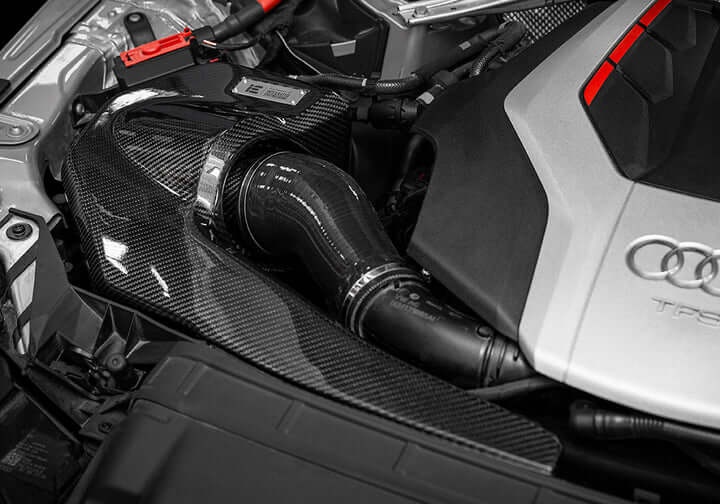

    PRECISION FIT

    3D scanning tools are used to create a digital duplicate of the vehicles engine bay, grille, bumper, and hood. This provides an incredibly high-resolution environment to reverse engineer and prototype the intake design. This not only allow engineers to take advantage of all available room but also results in a perfect and extremely high-end install.

    POWER RESULTS

    Every inch of IEs intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 19WHP and 21ft-lbs of torque, with even higher gains possible on hybrid turbo setups!

    FLOW BENCH TESTING

    The proof is in the testing. Back-to-back flow bench results show constant and consistent gains of up to 61.43% CFM over stock! This increase in CFM proves the upgraded intake systems efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.

    STOCK TURBO FLOW REPORT

    The following report details the above graph proving the extreme efficiency of our performance intake and turbo inlet system on the stock turbocharger.

    -IN. H20 STOCK INTAKE IE INTAKE & STOCK INLET IE INTAKE & IE INLET

    -5

    131 CFM

    149 CFM

    180 CFM

    -10

    191 CFM

    213 CFM

    258 CFM

    -15

    238 CFM

    263 CFM

    319 CFM

    -20

    278 CFM

    306 CFM

    370 CFM

    -25

    309 CFM

    343 CFM

    416 CFM

    -30

    344 CFM

    376 CFM

    457 CFM

    IE INTAKE & STOCK INLET IE INTAKE & IE INLET

    MAXIMUM INCREASE:

    +13.74% @ -5 in/H20

    +37.4% @ -5 in/H20

    HYBRID TURBO FLOW REPORT

    Upgrading the turbocharger to a hybrid setup demands even more airflow. The following flow results represent IEs intake and inlet upgrades with a hybrid turbo adapter.

    -IN. H20 STOCK INTAKE IE INTAKE & IE INLET

    -5

    131 CFM

    230 CFM

    -10

    191 CFM

    301 CFM

    -15

    238 CFM

    370 CFM

    -20

    278 CFM

    429 CFM

    -25

    309 CFM

    499 CFM

    -30

    344 CFM

    545 CFM

    IE INTAKE & IE INLET

    MAXIMUM INCREASE:

    +61.49% @ -25 in/H20

    The above gains are a result of various design details:

    1. The 5" air filter surface area and increased air volume improve turbo efficiency.
    2. The internal velocity stack provides a low-turbulence transition from the filter to the inlet.
    3. Carbon airbox high & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.

    To learn more about these features, click the design tab above.
