LEADING FEATURES
- Finely tune your power band
- Adjustment Range +/- 10 Deg
- Hard anodize outer ring for the ultimate in wear resistance
- Stainless ARP Hardware locks it securely

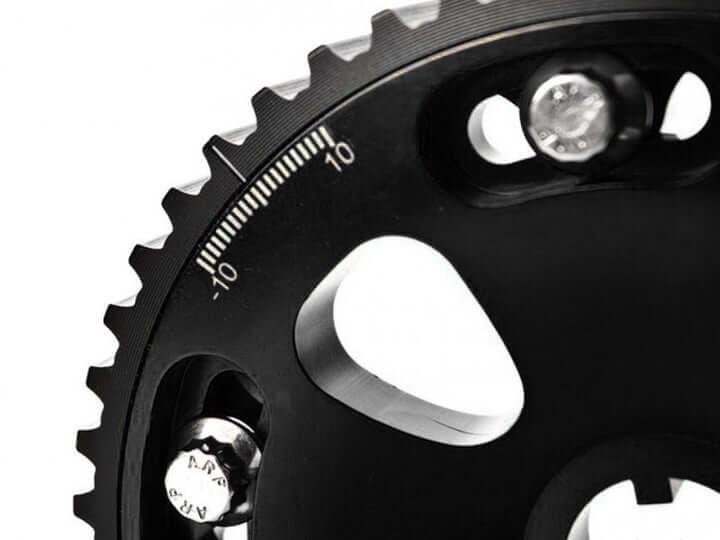

- Sharp laser etching for exact cam positioning
- Fully CNC machined in the USA
- Fits all VW/Audi 1.8T 20V 06A engines
- Includes ARP Cam gear Bolt & Diamond Friction Disk

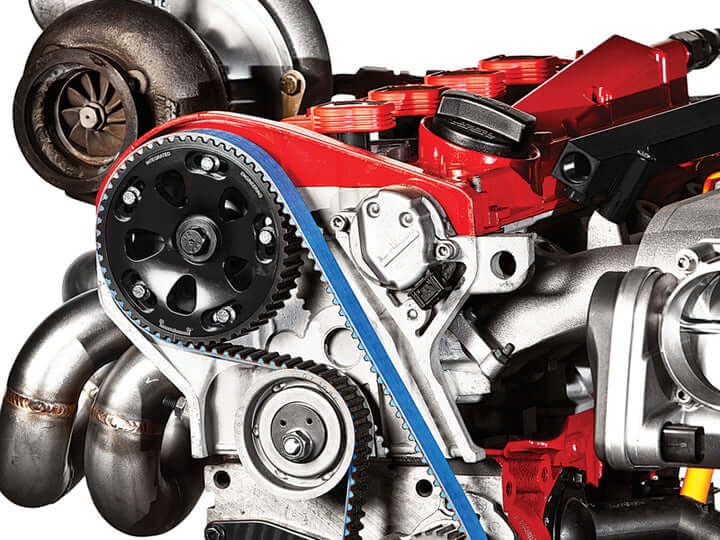

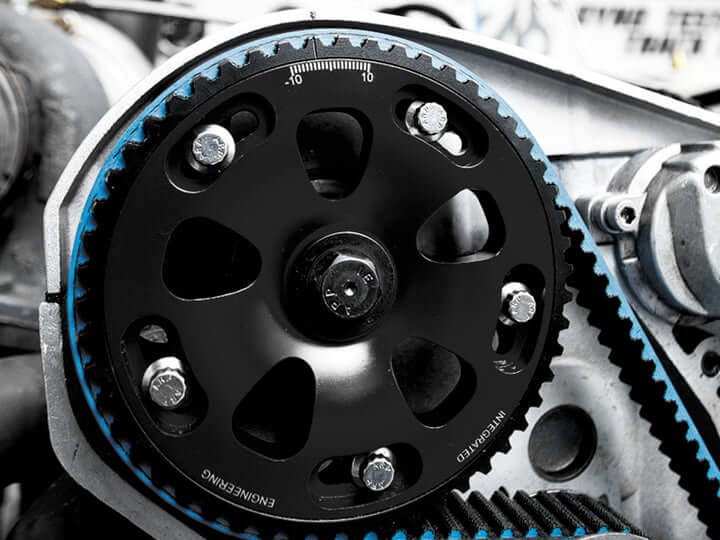

ADJUST YOUR CAM TIMING

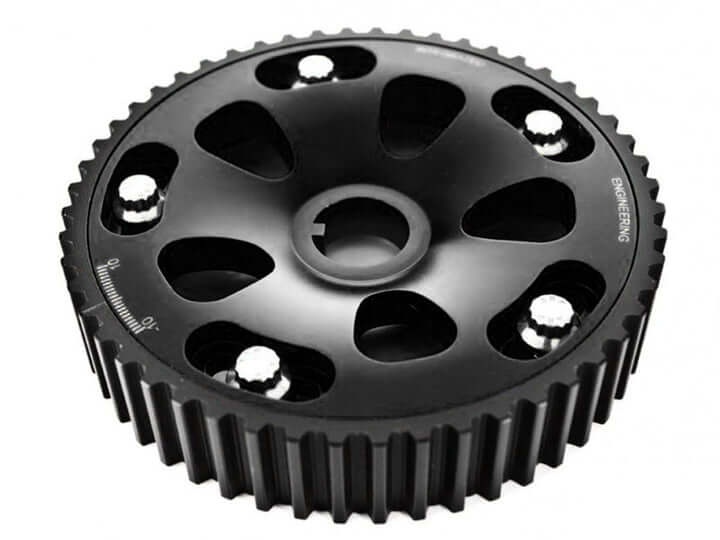

IEs Adjustable Cam Gear allows you to finely tune the power band of your engine by advancing or retarding your cam timing. This adjustment allows you to dial in whatever cams you have to the setup you are running for peak power. Each cam gear is precision CNC machined from solid 6061 aluminum and features a real one-piece male keyway for an exact OE fit. The cam gear outer rings are machined to OE specifications for a perfect mesh with your timing belt and then hard anodized for wear. The threads are roll form tapped to create the toughest threads available and then stuffed with high-quality stainless ARP bolts to lock it all together. Finally, a flawless layer of bright dip anodizing is interrupted only by the crisp laser etching which ensures you can always know exactly where your cams are positioned.

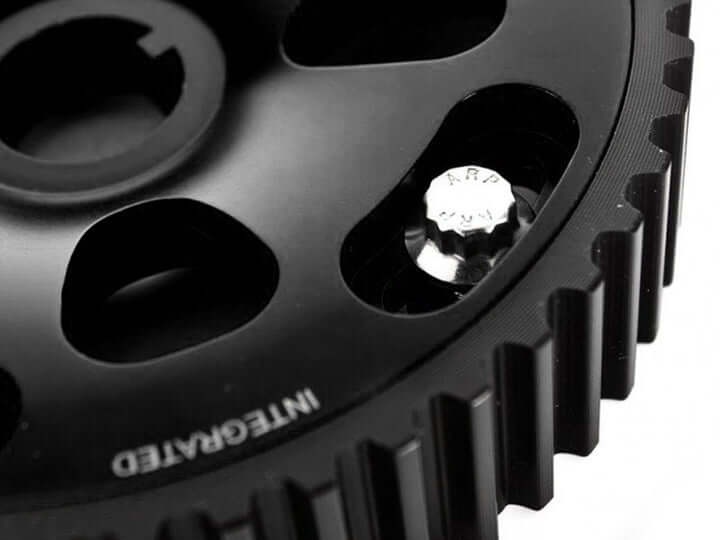

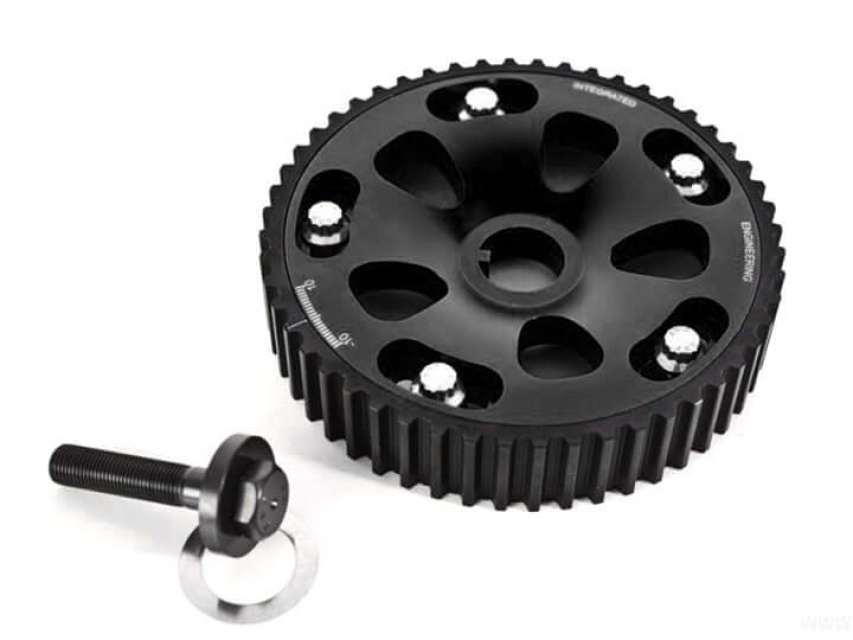

ARP BOLT & Friction Disk Included
With the added stress of larger cams and stiffer valve springs, the factory interface can become weakened and fail under high RPM use. The ARP Bolt greatly increases the clamping force, holding it firmly in place. The friction disk increases the grip between the cam gear and cam, preventing sheared keyways, especially used in conjunction with the upgraded bolt.
VEHICLE FITMENT
- VW - Golf 1999-2005 (MK4) 1.8T 20V
- VW - GTI 1999-2005 (MK4) 1.8T 20V
- VW - Passat 1998-2005 (B5 - B5.5) -06A only
- VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V
- VW - Beetle 1998-2011 (1C - 9C - 1Y) 1.8T 20V
- AUDI - A4 1996-2001 (B5 - B5.5) 1.8T 20V -06A only
- AUDI - A4 2002-2005 (B6) 1.8T 20V
- AUDI - A6 1998-2004 (C5) 1.8T 20V
- AUDI - A6 Allroad 1998-2004 (C5) 1.8T 20V
- AUDI - TT 2000-2006 (MK1 - 8N) 1.8T 20V
- AUDI - A3 1996-2003 (MK1 - 8L) 1.8T 20V
- AUDI - S3 1996-2003 (MK1 - 8L) 1.8T 20V
Does not fit early B5 Passat & A4 058 engines.
