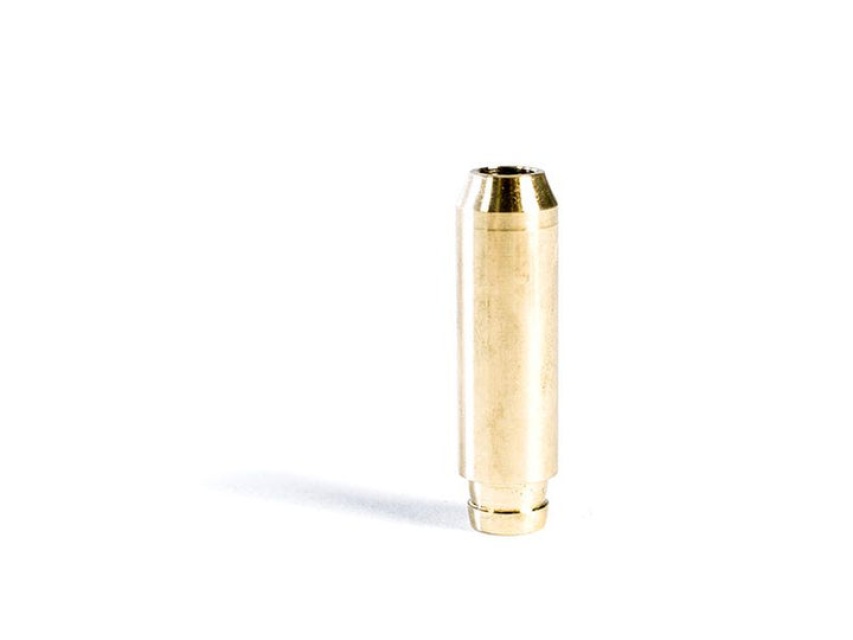

Audi Volkswagen EA113 EA888 2.0T 2.5T FSI TSI TFSI Ventilstyrning - 0.0010" Oversize Integrated Engineering

(0 omdömen)
​IE Performance ventilstyrningar för extra hållbarhet och prestanda.
219 KR
Lägg i kundvagnen
Lagerstatus  0
Leveranstid  5-15 vardagar
  • Produktbeskrivning

    IE performance valve guides directly replace the OE guides providing longevity, reliability, and performance for your cylinder head build.

    Oversized Valve Guides

    If your cylinder head has had the valve guides replaced previously, it is recommended to confirm the inside diameter of the holes in the cylinder head before installing new guides. In some cases, the holes in the head have worn, requiring valve guides with larger outside diameters to be used. It is common practice to use oversized guides only where needed; they do not need to be used unless that particular hole is out of specification. Before installing oversized valve guides, be sure to ream the holes to the correct diameter to include the proper press-fit.

    Valve Guide Undersized Inside Diameter

    All IE valve guides are sold with an undersized inside diameter. This allows the engine builder to ream the guides after installation and set the stem-to-guide clearances exactly where they need to be since different valve materials require different clearances. This feature eliminates any guesswork associated with replacing the guides. To make installation simple, we machine a small centering lip on the tip of each valve guide, which allows them to press into the head straight and consistently. See below section for recommended valve guide clearances.

    Recommended Clearances

    Every engine builder will have his or her own specs, but as a general rule of thumb, we use the following valve-to-guide clearances.

    • Ferrea Stainless Intake - 0.0008" to 0.0012"
    • Ferrea Super Alloy Exhaust - 0.0013" to 0.0015"
    • Ferrea Stainless Exhaust - 0.001" to 0.0015"
    • Supertech Stainless Intake - 0.0014" to 0.0024"
    • Supertech Stainless or Inconel Exhaust - 0.0018" to 0.0028"


    Valve Guide Mechanics

    Valve guides are small cylindrical bushings that press into a cylinder head, giving valves a place to reciprocate with minimal friction and wear. They facilitate valve movement and keep them perfectly centered on the valve seats. Lastly, they allow heat to transfer from the combustion chamber into the cylinder head, which is then cooled by engine coolant.

    Why You Should Replace Your Valve Guides

    When it comes time to rebuild your cylinder head, its very likely that you will find the OEM valve guides worn beyond wear limits. As mileage begins to add up, the inside diameter of your valve guides will wear, causing excessive clearance with the valve stems. Even on engines that have no modifications, it is common to see oil consumption, irregular valve wear, or even complete valve failure if the guides have become excessively worn.

    Performance Upgraded Valve Guides

    Integrated Engineering performance valve guides work as direct OEM replacements while offering several unique features to improve performance and increase longevity. IE valve guides are manufactured in our CNC machine shop from a proprietary bronze alloy and feature ultra-high concentricity for exact valve placement. This ensures that the head of the valve sits in the exact center of the seat, removing any possibility of leaks. Our premium alloy improves wear resistance, reduces friction, and improves heat transfer. By increasing thermal conductivity by 10%, you can expect extended valve life and reduced wear on valvetrain components.

    Aerodynamic Design

    To increase airflow through the intake and exhaust ports, we have designed our valve guides with an aerodynamic tip that does not protrude into the airstream like the factory units. IE valve guides are designed to directly replace the factory guides and work well for all rebuilds, whether it be an OEM refresh or a complete race engine build!


    Direct replacement for OEM valve guides
    Requires installation by a machine shop
    Sold individually


    • VW - 2.0T FSI EA113 (Belt Driven Engines ) | Requires 16 Guides
    • VW - 2.0T TSI Engines EA888 Gen 1 & 2 (Chain Driven Engines ) |Requires 16 Guides
    • VW - 2.5L 5-cylinder Engines 07K | Requires 20 Guides
    • Audi - 2.0T TFSI EA113 (Belt Driven Engines ) | Requires 16 Guides
    • Audi - 2.0T TFSI EA888 Gen 1 & 2 (Chain Driven Engines ) Requires 16 Guides
    • Audi - 2.5T TFSI (Gen 1) | Requires 20 Guides

    Valve guides are sold individually, please verify the required amount and engine fitment above*

    Teknisk specifikation

    Tillv. Art: IEVTVC6
  • Passar till
  • Audi Volkswagen EA113 EA888 2.0T 2.5T FSI TSI TFSI
  • Varumärke
  • Integrated Engineering Integrated Engineering (IE) specialiserar sig på prestandadelar till Volkswagen och Audi. Integrated Engineering fick sin plats bland entusiaster genom att ge snabb support och kvalitetsprodukter. Sortimentet erbjuder ECU-uppgraderingar, remaps, insug & luftfilterkit, intercoolers och downpipes.
    IE har innovativa produkter som underlättar trimningen av din VAG-bil.
