KEEP YOUR ENGINE CLEAN & SEALED
This IE Catch Can is the perfect base for setting up your own recirculating catch can system to prevent crankcase oil fumes from condensing and filling your intake piping, turbo piping, intercooler, intake manifold, and breather system without adding any smelly fumes or messy oil film to your engine bay. IEs state of the art Recirculating Catch Can is a must for easy maintenance of your performance engine.
LEADING FEATURES
- Completely universal for any engine
- Baffle system catches all oil blow-by
- O-ring sealed for odorless operation
- Choice of straight or 90-degree mounting bracket
- Recirculating can keeps all OE systems
- High flow 1/2" NPT inlet/outlet
- No welds make for a fully serviceable can
- Easy bottom mount drain plug
- Black anodized sleek and stealthy finish
BENEFITS OF A CATCH CAN
An IE catch can is a must for anyone looking to prevent crankcase oil blow-by and fumes from condensing and filling your turbo piping, intercooler, and intake manifold. The IE recirculated catch can is designed to catch all of the oil fumes and gunk omitted from the factory engine breather systems. This not only removes the blow-by oil and build-up, but will greatly help reduce oil buildup in the intake system, valves, combustion chamber, vacuum system, and PCV hoses which relate to power loss and poor drivability.

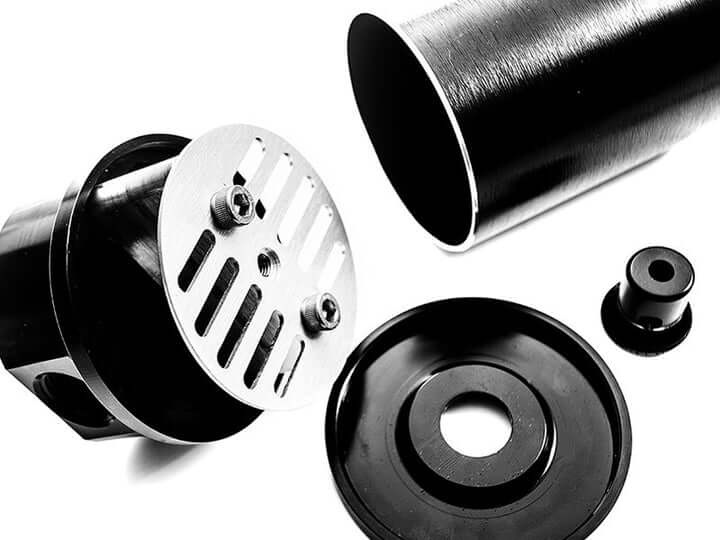

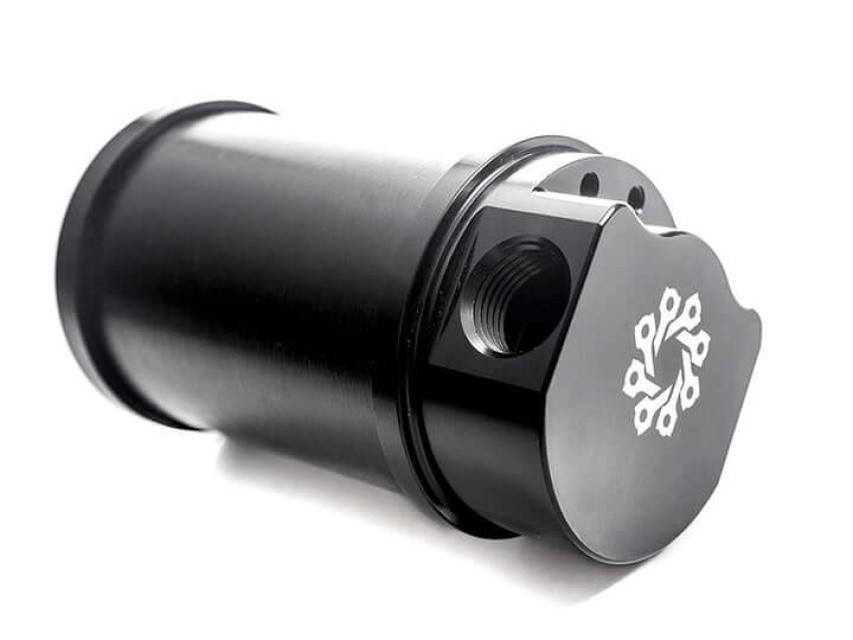

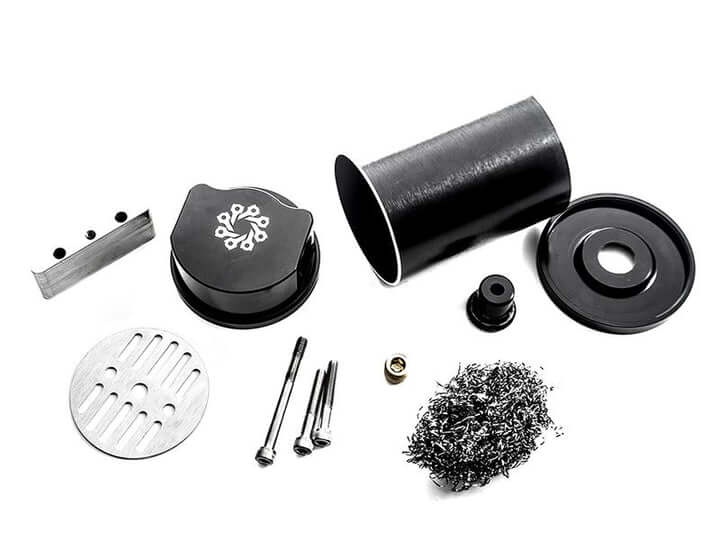

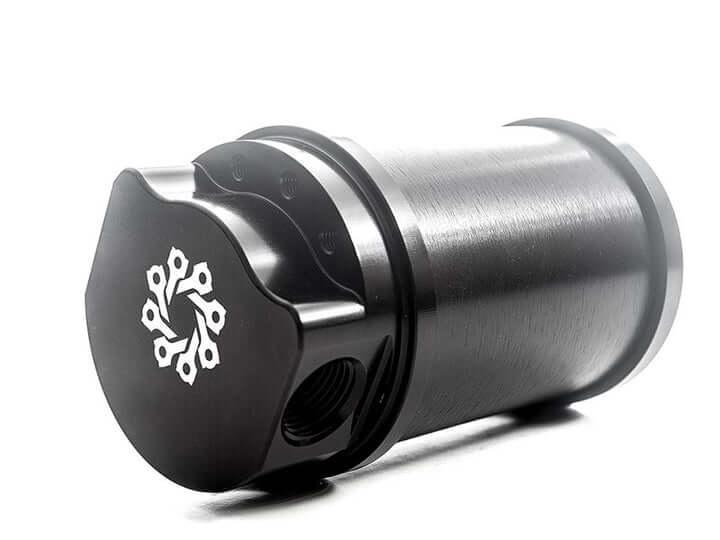

IE RECIRCULATING CATCH CAN DESIGN
The Integrated Engineering billet recirculating catch can feature our state-of-the-art baffle system. This baffle allows crankcase pressure to flow through the catch can while oil is separated and stays behind. This design separates more oil than the traditional catch can designs and keeps the liquid in the chamber and out of your engine intake and breather system. This sleek catch can is fully serviceable, easily disassembling if needed. Draining the catch can is simple with the use of a bottom mounted drain plug (no-tool t handle drain sold separately). Using our recirculating catch can, you are not required to remove any of the emissions systems or vent the catch can to the atmosphere, which can cause oil mist build-up in your engine bay. It simply installs into your factory breather system after the breather ports and before a recirculation port that goes back to the inlet. This beautiful can is finished with a bright black anodize finish, which maintains a stealthy appearance while looking great in your engine bay.
CUSTOM INSTALL REQUIRED
IE catch cans are a universal design and can be adapted to any vehicle with the use of readily available adapters and fittings. The included choice of 90 degree or straight mounting bracket makes installing the can into any engine bay easy. Our catch cans feature 1/2" NPT thread breather inlet and outlet to accept a wide variety of fittings, adapters, or hose ends to custom install into your factory breather system. IE also produces direct-fit catch can kits for many VW and Audi engines.

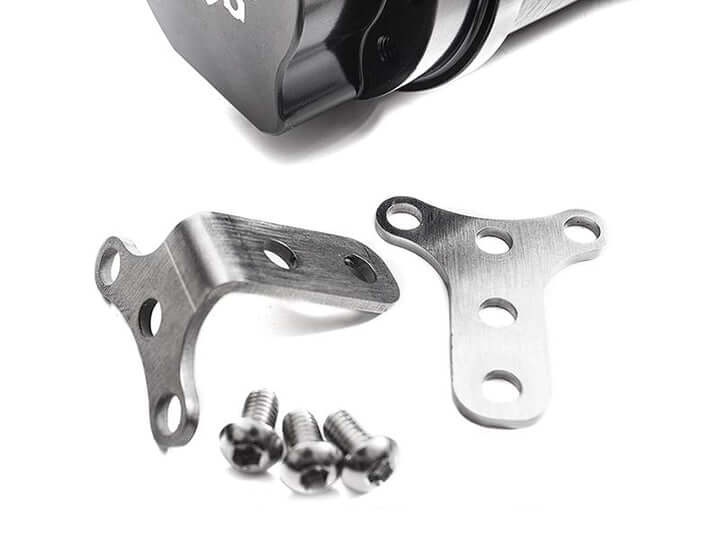

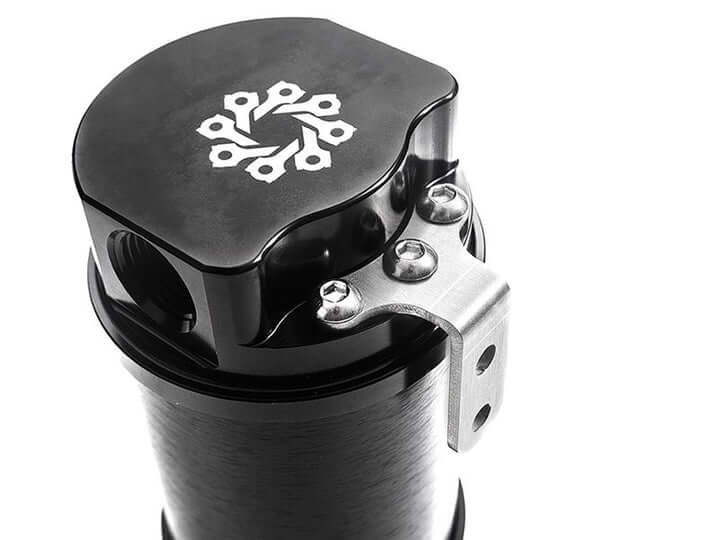

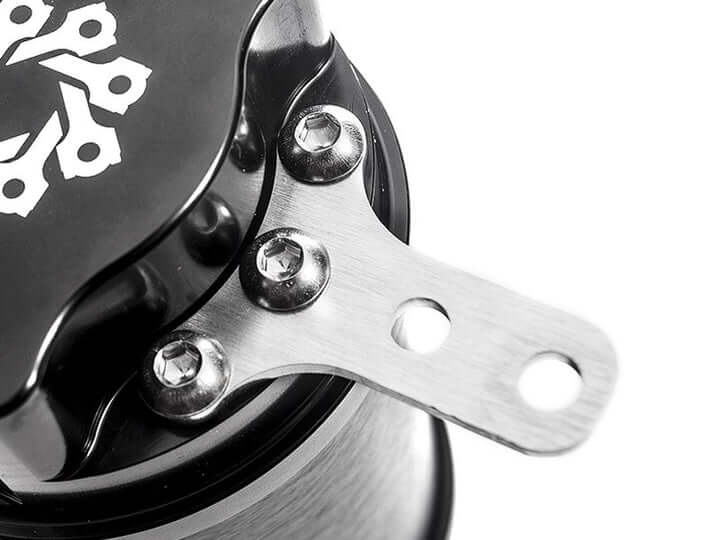

OPTIONAL MOUNT BRACKETS
To make your custom install as easy as possible, you have your choice of either a straight or 90-degree bracket. These stainless steel brackets are a direct-fit to the IE Surge tank, strong enough to keep it stable in any condition and help to make fabricating or finding your mount location as easy as possible. Add your choice of bracket style to your order above.
COLD WEATHER CLIMATES
Catch can kits are designed for warm weather climates only. If you live in an area with sub-freezing temperatures in winter months, extra precaution must be taken as condensation in the catch can and lines can freeze and cause pressure to build up in the crankcase. We recommend checking catch can content frequently or removing the system entirely during cold winter months. Integrated Engineering is not responsible for any damage caused by improper servicing of the catch can.
