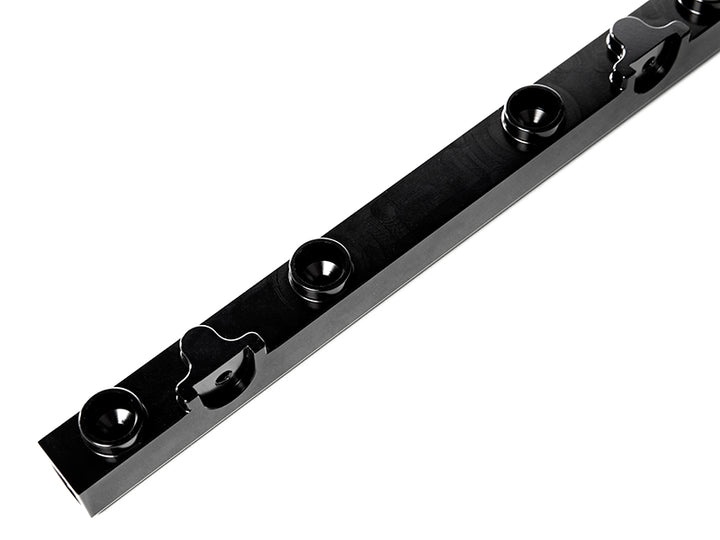

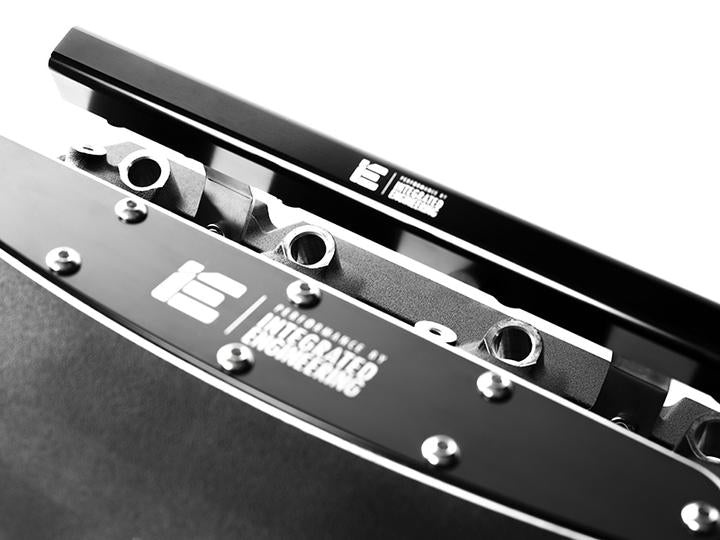

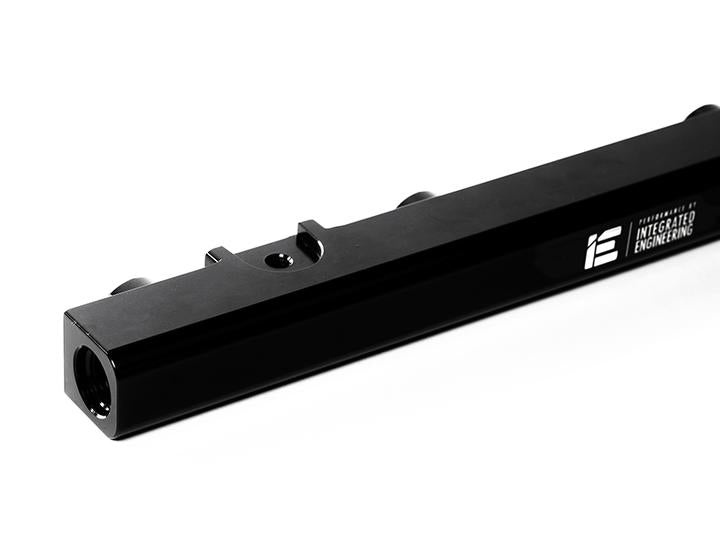

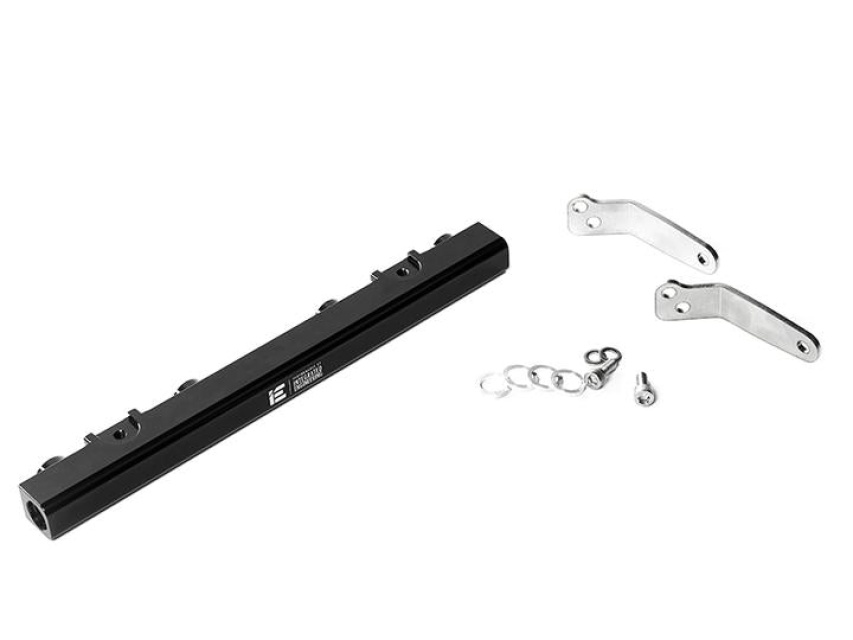

PORT INJECTION FUEL RAIL
This billet fuel rail is engineered for IEs Port Injection Intake Manifold and when combined allows the addition of a second set of fuel injectors to 2.0T FSI/TSI (EA113 & EA888 Gen1/2) engines. This listing is for the fuel rail only to be used as either a replacement part or if you are machining your own IE 2.0T Intake Manifold for injectors. Will only fit with IE brand Port Injection Manifold or modified Intake Manifold.Port injection setups are for race setups only. Requires custom fuel setup, fabrication, removal of emission systems, custom tuning, or stand-alone fuel controllers, and should only be attempted by professional builders.
LEADING FUEL RAIL FEATURES
- Allows for 4 additional fuel injectors on 2.0T FSI & TSI engines
- Will accept EV1 & EV14 compact fuel injectors
- Perfect for big-power big turbo and race engines
- Get past the direct injection "fuel limit ceiling"
- Adapt to existing fuel system with -6AN inlet/outlet

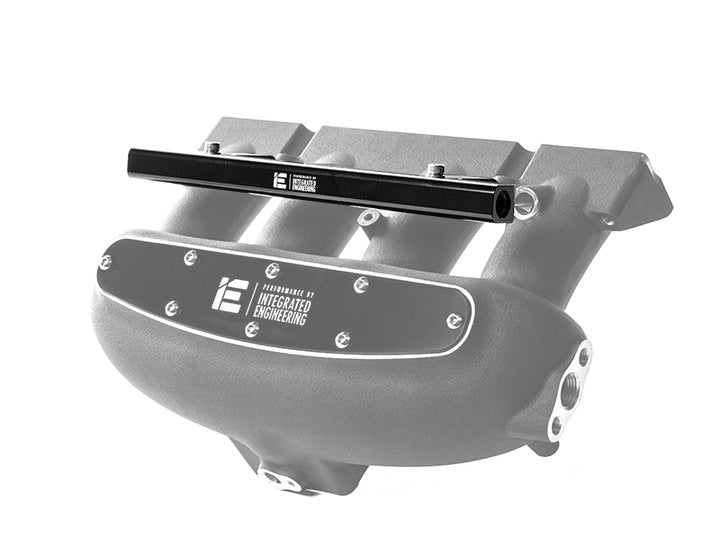

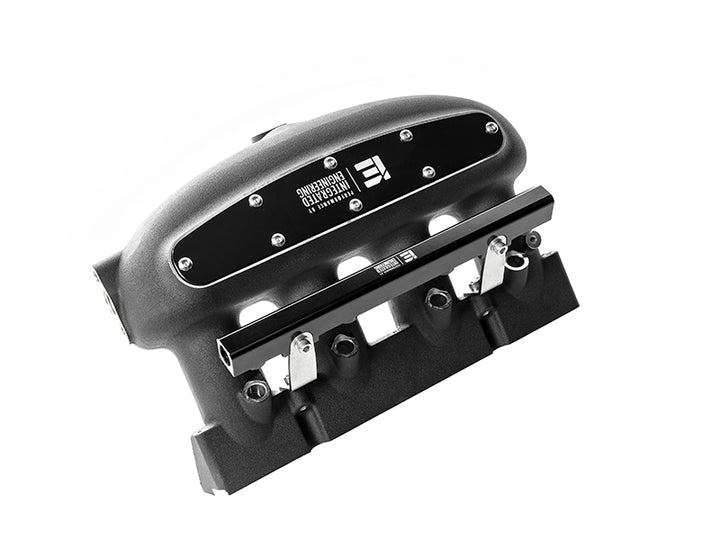

- Designed & engineered to fit IE Direct Port Intake Manifold
VEHICLE FITMENT

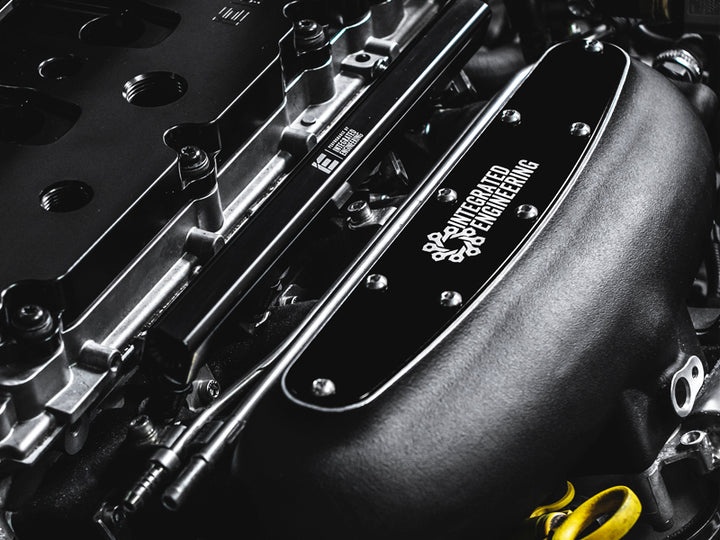

This fuel rail will fit the following vehicles when installed with IE Port Injection Manifold only.
VW & Audi - 2.0T FSI EA113 Engines
- Audi - A4 2005-2008 (B7) 2.0T EA113 TFSI engines
- Audi - A6 2005-2011 (C6) 2.0T EA113 TFSI engines
- Audi - A6 Allroad 2005-2011 (C6) 2.0T EA113 TFSI engines
- Audi - TT 2008-2015 (MK2 - 8J) 2.0T EA113 TFSI engines
- Audi - TTS 2008-2015 (MK2-8J) 2.0T EA113 TFSI engines
- Audi - A3 2006-2013 (MK2 - 8P) 2.0T EA113 TFSI engines
- VW - Golf R 2012-2013) (MK6) 2.0T EA113 FSI/TSI engines
- VW - GTI 2006-2009 (MK5) 2.0T EA113 FSI engines
- VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T EA113 FSI engines
- VW - Passat 2006-2010 (B6) 2.0T EA113 FSI engines
VW & Audi - 2.0T TSI EA888 Gen 1/2 Engines
- Audi - A4 2009-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1/2 engines*
- Audi - A4 Allroad 2009-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1/2 engines*
- Audi - A5 2008-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1/2 engines*
- Audi - A6 2012-2015 (C7 - C7.5) 2.0T TSI EA888 Gen 1/2 engines*
- Audi - TT 2008-2015 (MK2 - 8J) 2.0T TSI EA888 Gen 1/2 engines*
- Audi - A3 2006-2013 (MK2 - 8P) 2.0T TSI EA888 Gen 1/2 engines*
- VW - GTI 2006-2009 (MK5) 2.0T TSI EA888 Gen 1/2 engines*
- VW - GTI 2010-2014 (MK6) 2.0T TSI EA888 Gen 1/2 engines*
- VW - Jetta & Jetta GLI 2010-2014 (MK6) 2.0T TSI EA888 Gen 1/2 engines*
- VW - SportWagen 2011-2014 (MK6) 2.0T TSI EA888 Gen 1/2 engines*
- VW - CC 2009-2015 (3C8) 2.0T TSI EA888 Gen 1 & 2 engines*
- VW - Passat 2006-2010 (B6) 2.0T TSI EA888 Gen 1 & 2 engines*
*Does not fit B8/B8.5 A4 & A5 2.0T TSI engines with 5th injector factory aluminum intake manifolds.
*Fits VW & Audi 2.0T FSI EA113 and TSI EA888 Gen 1/2 engines only, does not fit MK7/MQB EA888 Gen 3 engines.
