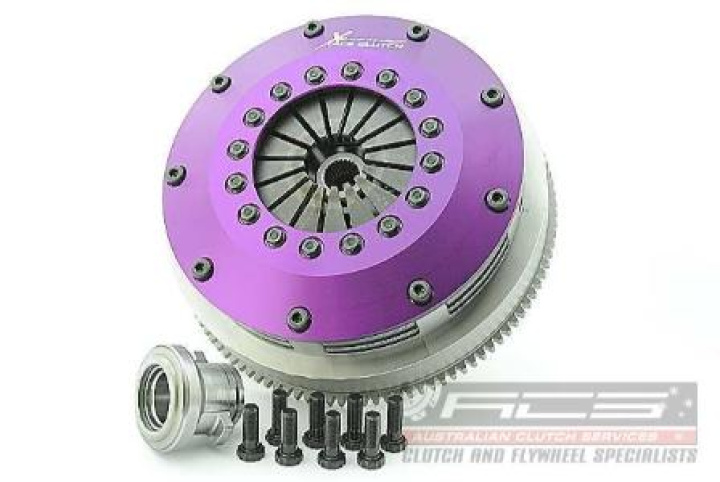

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Nissan Silvia S15 | 2000 1999.09-2002.08 SR20DE 1998 Petrol 118 kW 160 BHP (1999.09 - 2002.08)Nissan Silvia S15 | 2000 1999.09-2002.08 SR20DE 1998 Petrol 121 kW 165 BHP (1999.09 - 2002.08)
Nissan Silvia S15 | Turbo 16V 2000.11-2003.12 SR20DET 1998 Petrol 147 kW 200 BHP (2000.11 - 2003.12)
Nissan Silvia S15 | 2000 Turbo 2000.11-2003.12 SR20DET 1998 Petrol 184 kW 250 BHP (2000.11 - 2003.12)
