Xtreme Motorsport 200mm twin plate

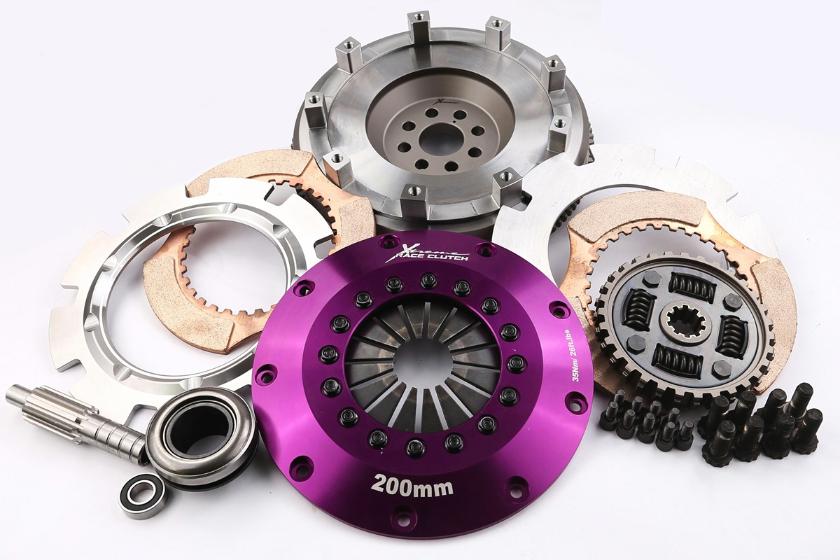

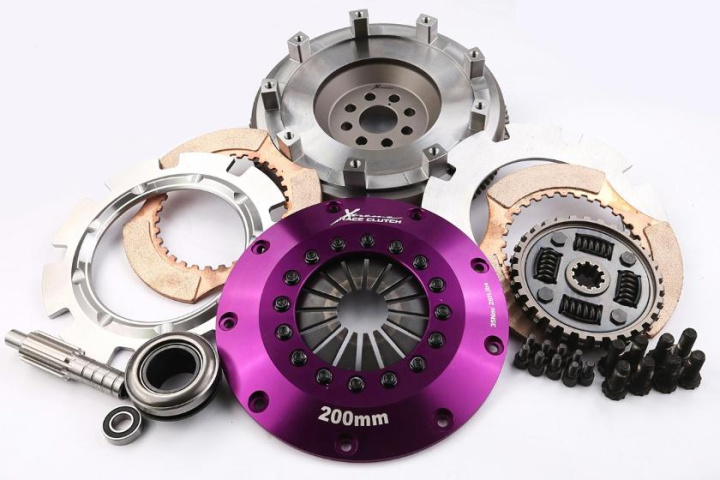

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- BMW 3-Series E30 | 318is 1989-1991 1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991)BMW 3-Series E36 | 318is 1992-1995 1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995)
BMW 3-Series E36 | 318is 1993-1995 1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995)
BMW 3-Series E36 | 318Ti 1994-1995 1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995)
BMW 5-Series E34 | 518i 1989-1994 1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994)
BMW 5-Series E34 | 518i 1993-1994 1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994)
BMW 5-Series E34 | 518i 1994-1995 1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995)
BMW 5-Series E34 | 518i 1994-1996 1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996)
BMW Z3 E36 | 1.9i 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
BMW 3-Series E36 | 318is 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
BMW 3-Series E36 | 318is 1996-1998 1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998)
BMW 3-Series E36 | 318Ti 1996-1999 1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999)
BMW 3-Series E46 | 320i 1998-2000 1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000)
BMW 3-Series E46 | 320i 1999-2000 1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000)
BMW 3-Series E46 | 320Ci 1999-2001 1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001)
BMW 3-Series E46 | 320Ci 2000-2007 2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007)
BMW 3-Series E36 | 323Ti 1997-2000 2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000)
BMW 3-Series E46 | 323i 1998-2000 2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000)
BMW 3-Series E46 | 323Ci 1999-2000 2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000)
BMW 3-Series E36 | 325i 1990-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995)
BMW 3-Series E36 | 325i 1991-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995)
BMW 3-Series E36 | 325i 1993-1995 2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995)
BMW 3-Series E36 | 328i 1995-1998 2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998)
BMW 3-Series E36 | 328i 1995-1999 2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999)
BMW 3-Series E46 | 328Ci 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
BMW 3-Series E46 | 328i 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
BMW 3-Series E46 | 328i 1999-2000 2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000)
BMW 3-Series E36 | M3 3.0 1992-1995 2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995)
BMW 3-Series E36 | M3 3.0 1994-1995 2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995)
BMW 3-Series E36 | M3 3.0 1993-1995 2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995)
BMW 3-Series E36 | M3 3.2 1995-1998 3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998)
BMW 3-Series E36 | M3 3.2 1996-1999 3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999)
BMW Z3 E36 | M3 1997-2000 3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000)
BMW Z3 E36 | M3 1998-2001 3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001)
