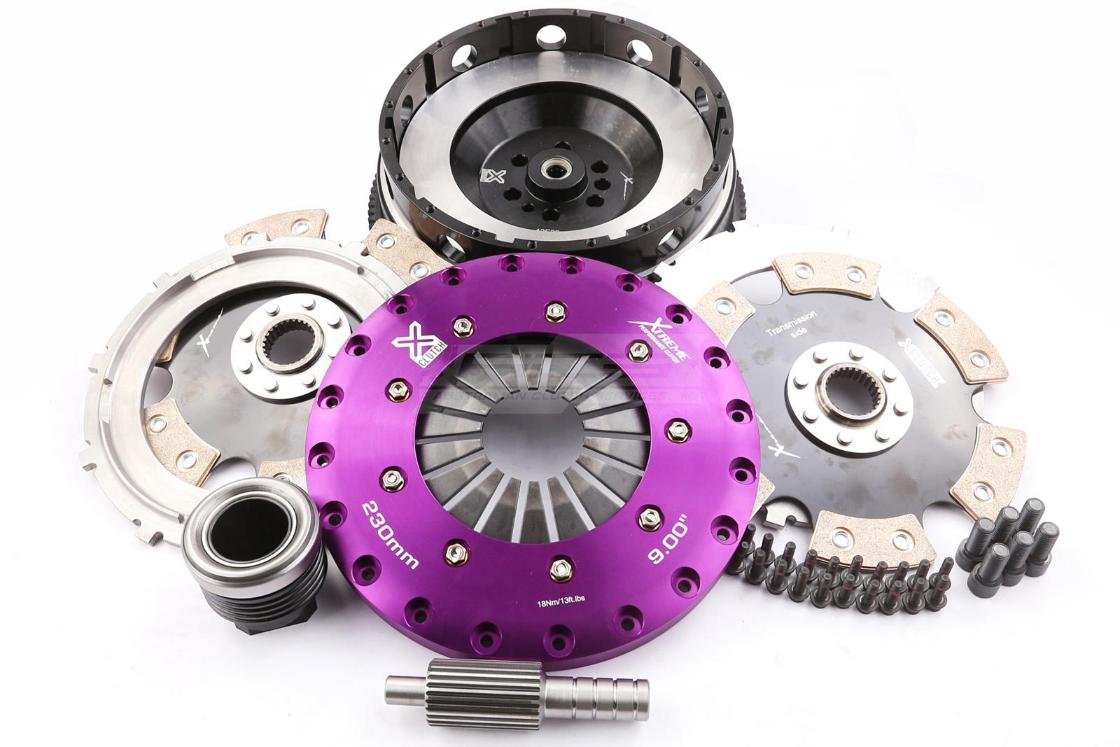

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- BMW 2-Series F22, F87 | M2 2015-2018 2979cc | 272KW | 370HP | N55 B30 A (2015-2018)BMW 2-Series F22, F87 | M2 Competition 2018.06-2021.06 2979cc | 302KW | 411HP | S55 B30 A (2018.06-2021.06)
BMW 4-Series F32, F82 | M4 2014.03-2020.06 2979cc | 317KW | 431HP | S55 B30 A (2014.03-2020.06)
BMW 4-Series F33, F83 | M4 2014.03-2020.06 2979cc | 317KW | 431HP | S55 B30 A (2014.03-2020.06)
BMW 3-Series F30, F80 | M3 2014-2018 2979cc | 317KW | 431HP | S55 B30 A (2014-2018)
BMW 3-Series F30, F80 | M3 Competition 2016-2018 2979cc | 331KW | 450HP | S55 B30 A (2016-2018)
BMW 2-Series F22, F87 | M2 CS 2019.11-2021.06 2979cc | 331KW | 450HP | S55 B30 A (2019.11-2021.06)
