Xtreme Motorsport 200mm twin plate

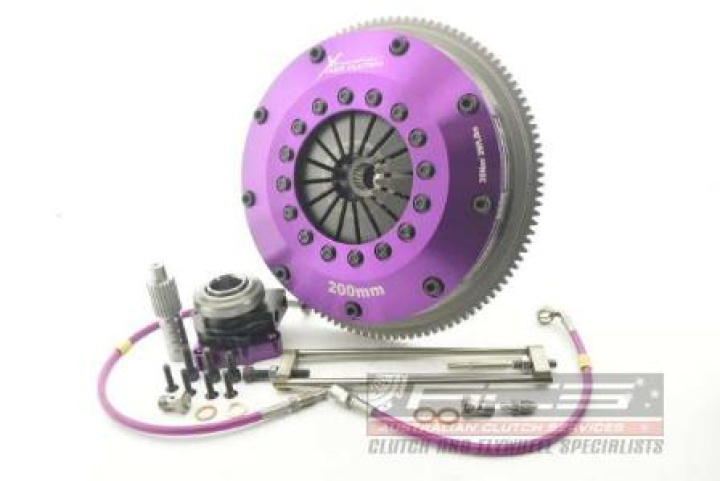

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Mitsubishi Lancer EVO VIII - 260 (CT9A) 2004.03-2005.07 4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07)Mitsubishi Lancer EVO VII (CT9A) 2001.01-2003.01 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01)
Mitsubishi Lancer EVO IV (CN9A) 1996.08-1997.12 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 - 1997.12)
Mitsubishi Lancer EVO V (CP9A. CT9A) 1998.01-1998.12 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12)
Mitsubishi Lancer EVO VII (CT9A) 2001.01-2003.01 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01)
Mitsubishi Lancer EVO VIII (CT9A) 2003.04-2005.03 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03)
Mitsubishi Lancer EVO IX (CT9A) 2005.01-2007.09 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09)
Mitsubishi Lancer EVO IX (CT9A) 2005.08-2006.09 4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09)
Mitsubishi Lancer EVO VIII - FQ-300 (CT9A) 2003.04-2004.04 4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04)
Mitsubishi Lancer EVO VIII - FQ-300 (CT9A) 2003.04-2004.04 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04)
Mitsubishi Lancer EVO IX - FQ-300 (CT9A) 2005.06-2006.12 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12)
Mitsubishi Lancer EVO VIII - FQ-320 (CT9A) 2004.04-2006.08 4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08)
Mitsubishi Lancer EVO VIII - FQ-330 (CT9A) 2003.10-2006.08 4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08)
Mitsubishi Lancer EVO VIII - FQ-340 (CT9A) 2004.04-2005.03 4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03)
Mitsubishi Lancer EVO IX - FQ-340 (CT9A) 2005.06-2007.12 4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12)
Mitsubishi Lancer EVO IX - FQ-360 (CT9A) 2006.07-2007.12 4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12)
Mitsubishi Lancer EVO VIII - FQ-400 (CT9A) 2004.10-2006.08 4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08)
Mitsubishi Lancer EVO V - RS450 Ralliart (CP9A) 1998.01-1998.06 4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 - 1998.06)
