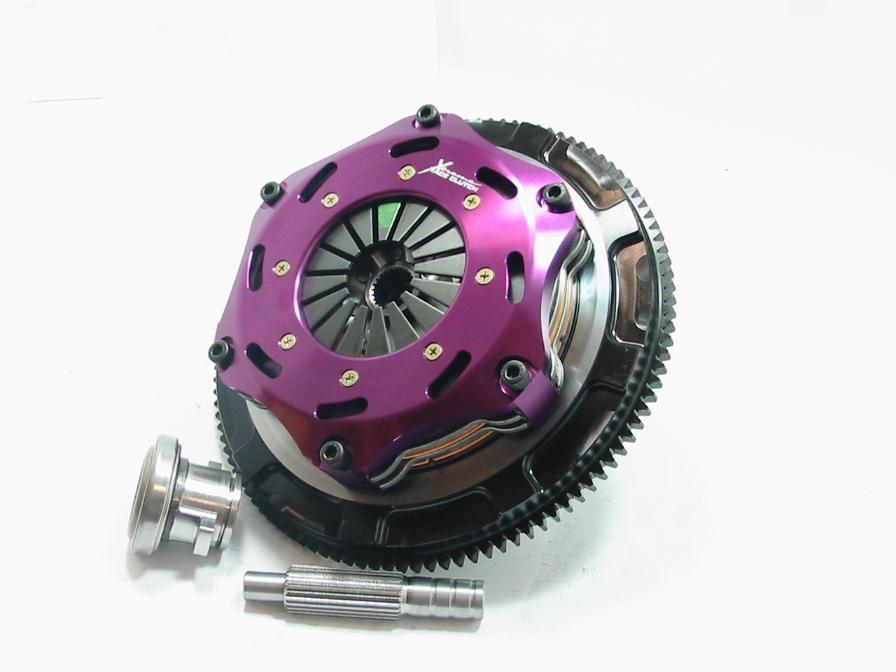

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Nissan Silvia S110 | 1.8 1991.04-1994.03 SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03)Nissan 200SX S14 | 2.0 i 16V Turbo 1993.10-1999.12 SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)
Nissan Silvia S13 | 2.0 1991.01-1993.09 SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09)
Nissan 180SX S13 | 2.0 1992.01-1997.01 SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01)
Nissan 200SX S14 | 2.0 Turbo 1994.04-1999.09 SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09)
Nissan Silvia S13 | 2.0 1991.01-1993.09 SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09)
