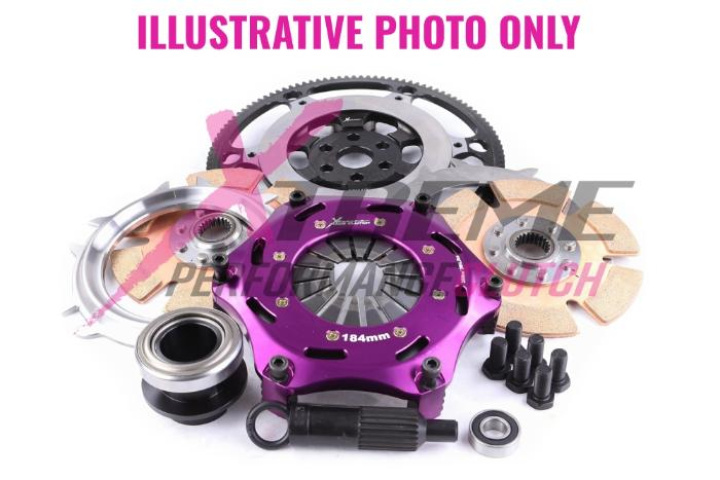

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Toyota GT86 2.0 (ZN6AC_. ZN6BC_) 2012.03-2016.08 FA20, FA20D, 4U-GSE 1998 Petrol 147 kW 200 BHP (2012.03 - 2016.08)Subaru BRZ 2.0 (ZC6) 2016.08-2021 FA20C 1998 Petrol 152 kW 207 BHP (2016.08 - 2021)
Subaru BRZ 2.0 (ZC6) 2012.06-2016.08 FA20D 1998 Petrol 147 kW 200 BHP (2012.06 - 2016.08)
Toyota GT86 2.0 (ZN6EY_) 2016.08-2022 FA20D, 4U-GSE 1998 Petrol 152 kW 207 BHP (2016.08 - 2022)
Subaru BRZ 2.4 (ZD8) 2021.10- FA24C, FA24D 2387 Petrol 174 kW 237 BHP (2021.10 -)
Toyota GR86 2.4 (ZN8) 2022.05- FA24C, FA24D 2387 Petrol 174kW 237 BHP (2022.05 -)
