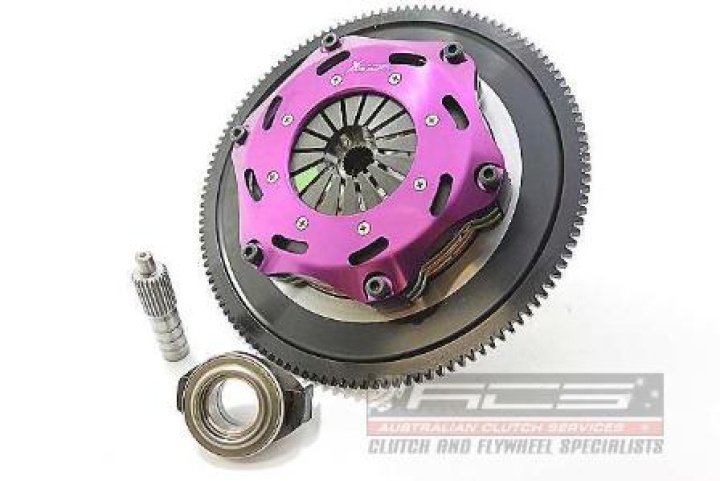

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Subaru Forester 2.5 AWD (SG9. S11SG. S12SH) 2005.06-2008.05 EJ255 2457 Petrol 169 kW 230 BHP (2005.06 - 2008.05)Subaru Impreza 2.5 i WRX AWD (GDG) 2005.09-2008.12 EJ255 2457 Petrol 169 kW 230 BHP (2005.09 - 2008.12)
Subaru Impreza 2.5 WRX AWD (GGG) 2005.09-2008.12 EJ255 2457 Petrol 169 kW 230 BHP (2005.09 - 2008.12)
Subaru Impreza 2.5 AWD (GHE) 2008.01-2011.09 EJ255 2457 Petrol 169 kW 230 BHP (2008.01 - 2011.09)
Subaru Forester 2.5 AWD (SH9) 2008.06-2013.09 EJ255 2457 Petrol 169 kW 230 BHP (2008.06 - 2013.09)
Subaru Impreza 2.5 WRX S AWD 2009.02-2010.12 EJ255 2457 Petrol 188 kW 255 BHP (2009.02 - 2010.12)
Subaru Impreza 2.5 WRX SE AWD (GRE) 2010.07-2013.08 EJ255 2457 Petrol 195 kW 265 BHP (2010.07 - 2013.08)
Subaru WRX 2.0 AWD (GK6. GK8) 2013.09-2018 FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - 2018)
Subaru WRX 2.0 AWD (GK6. GK8) 2013.09-2021 FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - 2021)
