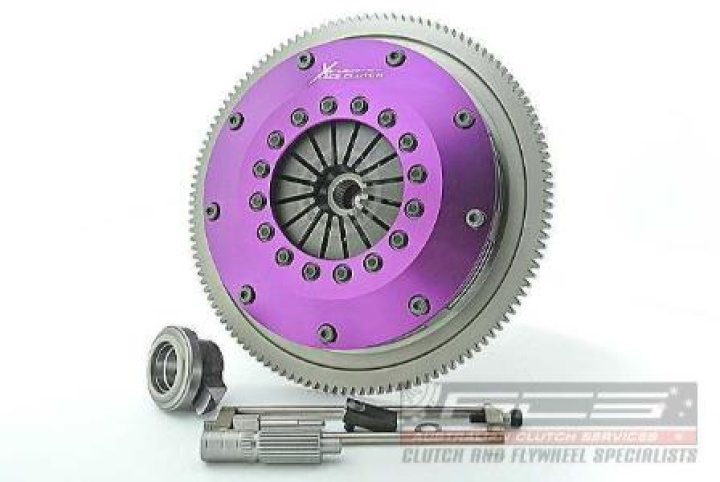

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Subaru Impreza 2.0 i Turbo AWD (GF8) 1994.03-2000.12 EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GC8) 1994.03-2000.12 EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) Suits 5 Speed Gearboxn - Subaru Forester 2.0 S Turbo AWD (SF5) 1998.06-2001.04 EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) Suits 5 Speed Gearboxn - Subaru Forester 2.0 S Turbo AWD (SF5) 2001.04-2002.09 EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) Suits 5 Speed Gearboxn - Subaru Forester 2.0 S Turbo AWD (SG5) 2002.02-2005.05 EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GDA) 5 speed 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 AWD (GC8) 1998.09-2000.09 EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) Suits 5 Speed Gearboxn - Subaru Legacy 2.0 AWD (BE5) 2002.02-2003.06 EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) Suits 5 Speed Gearboxn - Subaru Legacy 2.0 AWD (BE5) 2002.06-2003.08 EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) Suits 5 Speed Gearboxn - Subaru Impreza 2.0 Turbo AWD (GC8) 1996.12-2000.12 EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) Suits 5 Speed Gearboxn - Subaru Legacy 2000 Turbo 4WD (BC5) 1992.05-1994.07 EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) Suits 5 Speed Gearboxn - Subaru Legacy 2000 Turbo Super 4WD (BF5) 1992.05-1994.07 EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) Suits 5 Speed Gearboxn - Subaru Forester 2.5 AWD (SG9) 2003.12-2005.05 EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) Suits 5 Speed Gearboxn - Subaru Forester 2.5 Prodrive Performance Pack AWD 2005.05-2005.09 EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) Suits 5 Speed Gearbox
