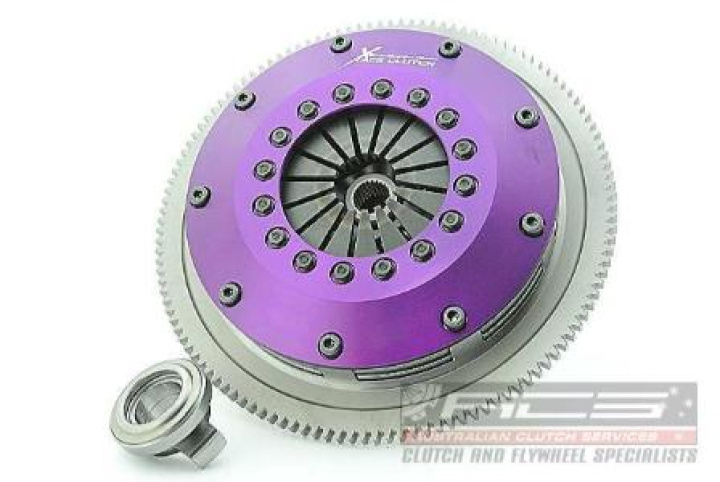

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Toyota GT86 2.0 (ZN6AC_. ZN6BC_) 2012.03-2016.08 FA20, FA20D, 4U-GSE 1998 Petrol 147 kW 200 BHP (2012.03 - 2016.08)Subaru BRZ 2.0 (ZC6) 2016.08-2021 FA20C 1998 Petrol 152 kW 207 BHP (2016.08 - 2021)
Subaru BRZ 2.0 (ZC6) 2012.06-2016.08 FA20D 1998 Petrol 147 kW 200 BHP (2012.06 - 2016.08)
Toyota GT86 2.0 (ZN6EY_) 2016.08-2022 FA20D, 4U-GSE 1998 Petrol 152 kW 207 BHP (2016.08 - 2022)
Subaru BRZ 2.4 (ZD8) 2021.10- FA24C, FA24D 2387 Petrol 174 kW 237 BHP (2021.10 -)
Toyota GR86 2.4 (ZN8) 2022.05- FA24C, FA24D 2387 Petrol 174kW 237 BHP (2022.05 -)
