Xtreme Motorsport 200mm twin plate

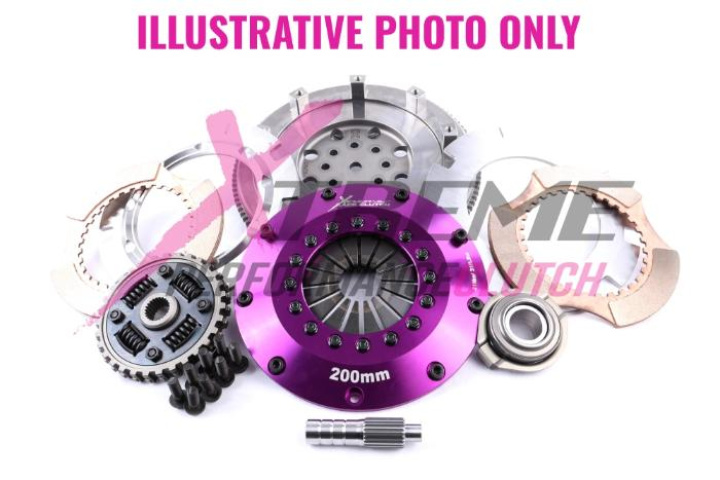

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Toyota Supra 3.0 i Bi-Turbo (JZA80_) 1993.05-2002.07 2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07)Toyota Supra 3.0 i Bi-Turbo (JZA80_) 1994.03-2002.07 2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07)
Toyota Supra 3.0 i Bi-Turbo (JZA80_) 1993.05-2002.07 2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07)
