Xtreme Motorsport 200mm twin plate

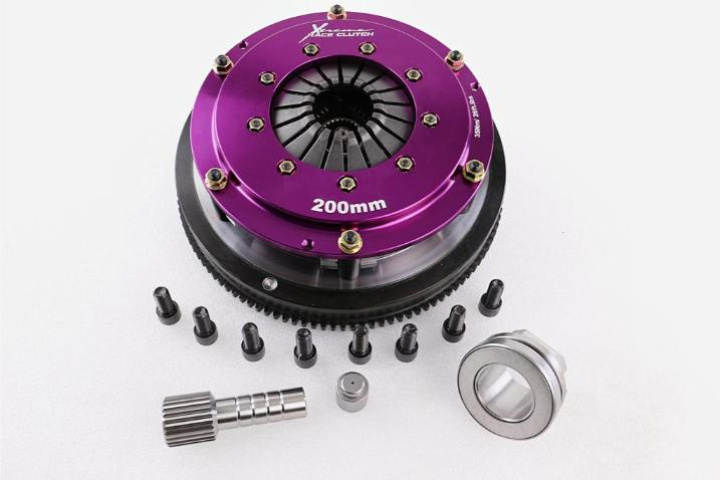

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- BMW 1-Series E82 | 135i 2007-2013 2979cc | 225KW | 306HP | N54 B30 A (2007-2013) 6 Bolt Crank, n - BMW 1-Series E88 | 135i 2008-2013 2979cc | 225KW | 306HP | N54 B30 A (2008-2013) 6 Bolt Crank, n - BMW Z4 E89 | sDrive 35i 2009.02-2016.08 2979cc | 225KW | 306HP | N54 B30 A (2009.02-2016.08) 6 Bolt Crank, n - BMW 1-Series E82 | 135i 2007-2013 2979cc | 240KW | 326HP | N54 B30 A (2007-2013) 6 Bolt Crank,
