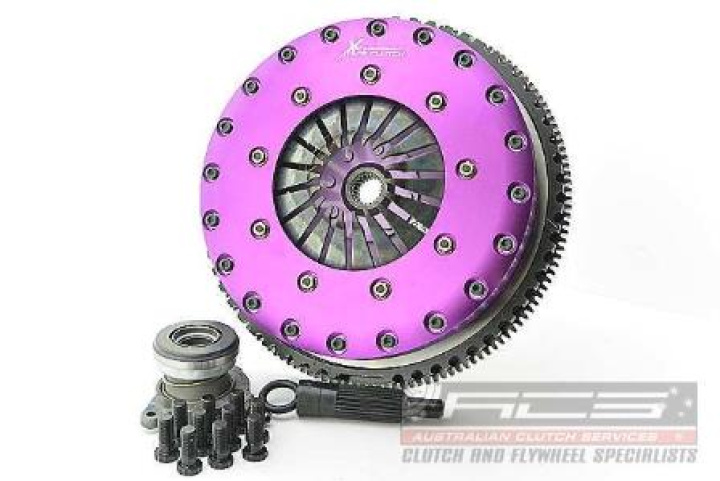

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Volvo S40 T5 2004.01-2007.12 B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12)Volvo S40 T5 AWD 2004.04-2007.12 B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12)
Volvo V50 (545) T5 2004.04-2007.12 B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12)
Volvo V50 (545) T5 AWD 2004.04-2007.12 B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12)
Volvo C30 (533) T5 2006.10-2012.12 B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12)
Volvo V50 (545) T5 AWD 2007.03-2010.12 B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12)
Volvo C30 (533) T5 2007.03-2012.12 B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12)
Volvo C30 (533) T5 2007.10-2013.12 B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12)
Ford Mondeo 2.5 2007.03-2012.12 HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12)
Ford Mondeo 2.5 2007.03-2015.01 HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01)
Ford Mondeo XR5 Turbo 2007.03-2015.01 HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01)
Ford S-MAX 2.5 ST 2006.05-2014.12 HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12)
Ford Focus 2.5 ST 2005.10-2012.09 HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09)
Ford Focus 2.5 RS 2009-2012 JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012)
