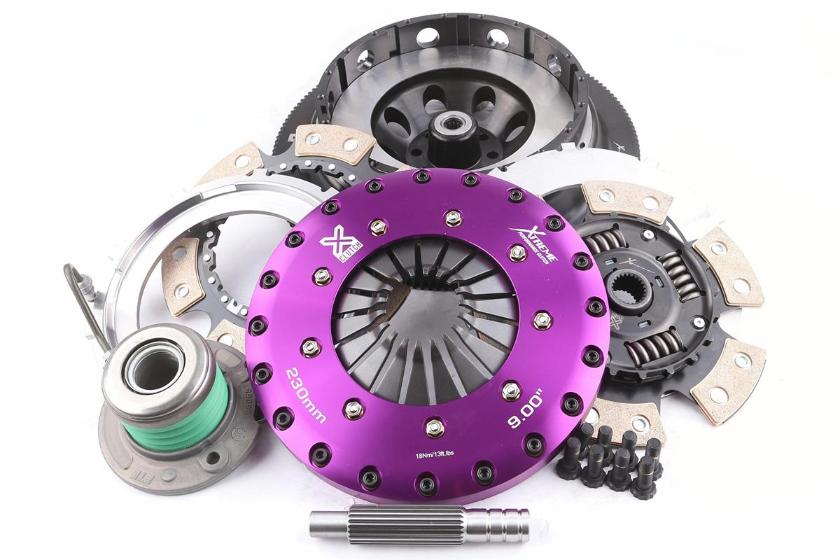

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Ford Mustang 5.0 GT 2018.06-2023.11 50SDEM 5038 Petrol 339 kW 461 BHP (2018.06 - 2023.11)Ford Mustang 5.0 Bullitt 2017-2019 50SDEM 5038 Petrol 345 kW 469 BHP (2017 - 2019)
