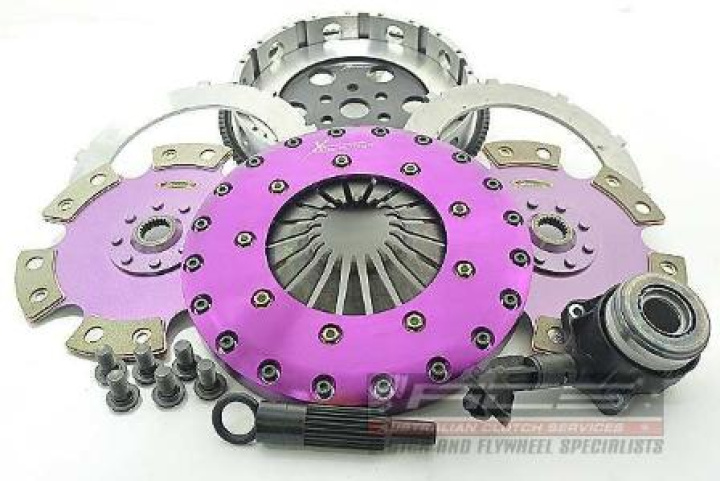

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Ford Focus 2.0 ST 2012.07-2017.12 R9DA, R9DB, R9DC, R9DD 1999 Petrol 184 kW 250 BHP (2012.07 - 2017.12)Ford Mondeo 2.0 EcoBoost 2010.03-2014.09 TPBA 1999 Petrol 176 kW 239 BHP (2010.03 - 2014.09)
Ford Mondeo 2.0 EcoBoost 2010.07-2015.01 TPBA 1999 Petrol 176 kW 240 BHP (2010.07 - 2015.01)
Ford S-MAX 2.0 EcoBoost 2010.07-2014.12 TPWA 1999 Petrol 176 kW 240 BHP (2010.07 - 2014.12)
Ford Focus 2.3 RS AWD 2015.11-2018.12 YVDA 2261 Petrol 257 kW 350 BHP (2015.11 - 2018.12)
