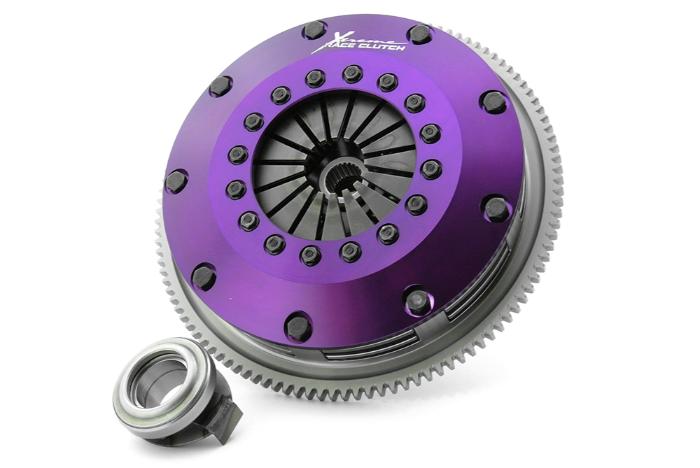

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Honda Civic Gen. V | 1.6 VTi (EG9) 1991.10-1995.11 B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)Honda Civic Gen. V | 1.6 VTi 16V (EG6) 1991.10-1995.11 B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
Honda Civic Gen. VI | 1.6 VTi (EK4) 1995.11-2001.02 B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02)
Honda Civic Gen. VI | 1.6 i Vtec (EM1) 1999.04-2000.12 B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12)
Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11)
Honda Integra 1.8 ESI (DB7) 1993.09-2001.08 B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08)
Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11)
Honda Integra 1.8 VTiR (DC2) 1993.07-1999.11 B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11)
Honda Civic Gen. VI | 1.8 16V (MB6) 1997.01-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02)
Honda Civic Gen. VI | 1.8 16V (MC2) 1998.04-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02)
Honda Integra 1.8 Type-R (DC2) 1997.11-2001.10 B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10)
Honda CR-V 2.0 16V 4WD (RD1. RD3) 1995.10-2001.12 B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12)
Honda CR-V 2.0 16V 4WD (RD1. RD3) 1999.01-2002.02 B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02)
Honda CR-V 2.0 (RD1) 1999.04-2002.02 B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02)
