Xtreme Motorsport 200mm twin plate

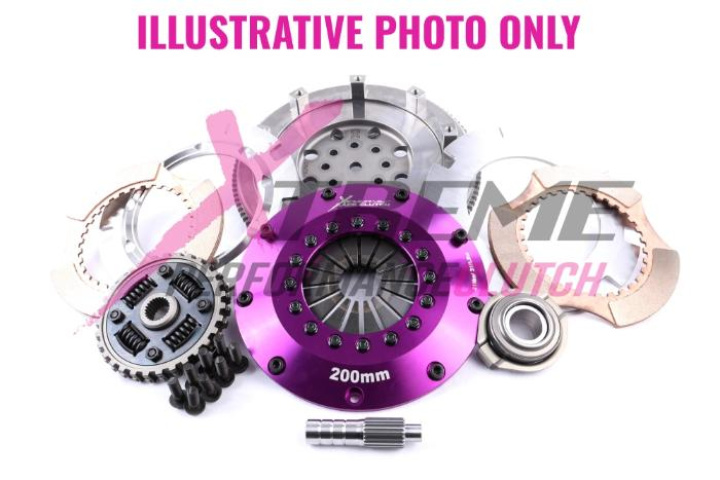

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Honda Prelude Gen. IV | 2.2 S (BA8) 1991.12-1996.11 F22A1 2156 Petrol 96 kW 131 BHP (1991.12 - 1996.11)Honda Prelude Gen. V | 2.2 Si (BB5) 1997.03-2001.04 F22Z6 2156 Petrol 118 kW 160 BHP (1997.03 - 2001.04)
Honda Prelude Gen. IV | 2.2 VTi-R (BB1) 1994.02-1997.02 H22A1 2156 Petrol 142 kW 193 BHP (1994.02 - 1997.02)
Honda Prelude Gen. V | 2.2 VTi-R (BB6) 1997.03-1998.10 H22A4 2156 Petrol 142 kW 193 BHP (1997.03 - 1998.10)
Honda Prelude Gen. V | 2.2 16V (BB6. BB8) 1996.10-2000.10 H22A5, H22A4, H22A6, H22A8, H22Z1 2156 Petrol 147 kW 200 BHP (1996.10 - 2000.10)
Honda Prelude Gen. IV | 2.3 i 16V (BB2) 1992.02-1996.09 H23A2 2259 Petrol 118 kW 160 BHP (1992.02 - 1996.09)
