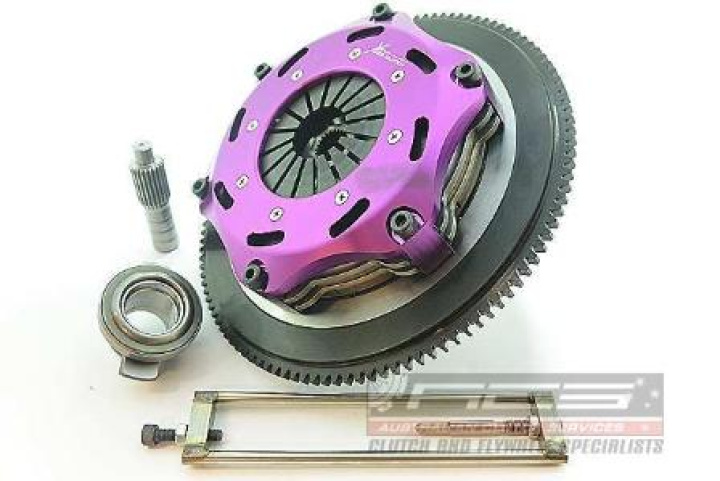

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Mitsubishi Lancer 2.0 i Ralliart 4WD (CY4A) 2008.10-2015 4B11-T C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)Mitsubishi Lancer 2.0 Ralliart 4WD (CX4A) 2008.10-2015 4B11-T C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)
Mitsubishi Lancer EVO X (CZ4A) 2008.06-2015.12 4B11-T C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12)
Mitsubishi Lancer EVO X (CZ4A) 2008.06-2015.03 4B11-T C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03)
Mitsubishi Lancer EVO X (CZ4A) 2014.09-2015.12 4B11-T C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12)
Mitsubishi Lancer EVO X - FQ400 (CZ4A) 2009.05-2010.12 4B11-T C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12)
Mitsubishi Lancer EVO X - FQ440 (CZ4A) 2014.05-2014.06 4B11-T C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06)
