Xtreme Motorsport 200mm twin plate

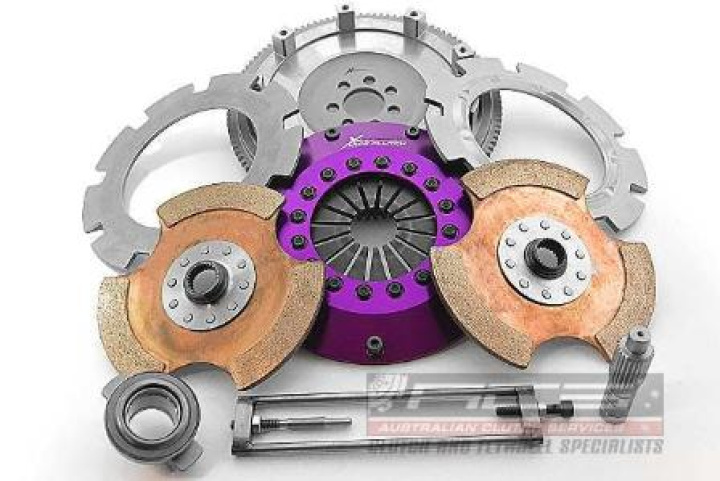

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Mitsubishi Lancer 2.0 i Ralliart 4WD (CY4A) 2008.10-2015 4B11-T C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)Mitsubishi Lancer 2.0 Ralliart 4WD (CX4A) 2008.10-2015 4B11-T C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)
Mitsubishi Lancer EVO X (CZ4A) 2008.06-2015.12 4B11-T C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12)
Mitsubishi Lancer EVO X (CZ4A) 2008.06-2015.03 4B11-T C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03)
Mitsubishi Lancer EVO X (CZ4A) 2014.09-2015.12 4B11-T C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12)
Mitsubishi Lancer EVO X - FQ400 (CZ4A) 2009.05-2010.12 4B11-T C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12)
Mitsubishi Lancer EVO X - FQ440 (CZ4A) 2014.05-2014.06 4B11-T C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06)
