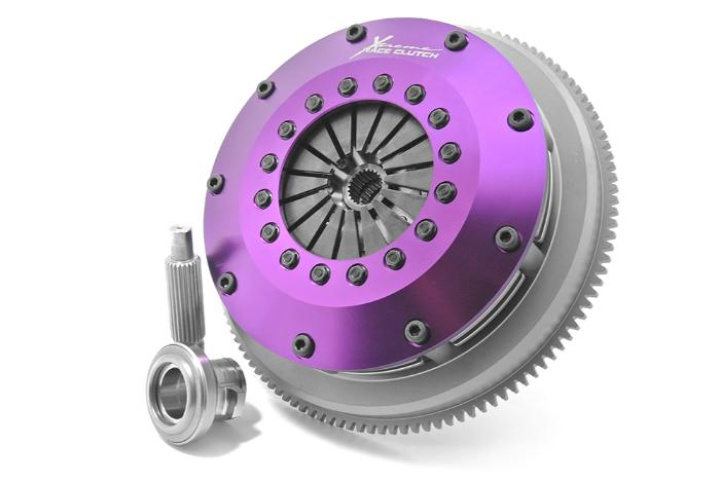

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Nissan Skyline R32 | 2.0 1990.01-1993.01 RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01)Nissan Skyline R32 | 2.0 Turbo 1989.03-1993.06 RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan Skyline R32 | 2.0 Turbo 4x4 1989.03-1993.06 RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan Skyline R32 | 2.0 1990.01-1993.01 RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan Skyline R32 | 2.0 AWD 1990.01-1993.01 RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan Skyline R32 | 2.5 1989.03-1993.06 RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06)
Nissan Skyline R33 | 2.5 1993.07-1998.05 RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan Skyline R33 | 2.5 4x4 1993.07-1998.05 RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan Skyline R34 | 2.5 4x4 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan Skyline R33 | 2.5 1994.01-2000.07 RB25DET 2498 Petrol 184 kW 250 BHP (1994.01 - 2000.07)
Nissan Skyline R32 | 2.6 Twin Turbo 4x4 1989.04-1993.06 RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
Holden Calais VL | 3.0 EFi 1986.03-1988.09 RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Holden Commodore VL | 3.0 EFi 1986.03-1988.09 RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Nissan Skyline R31 | 3.0 1986.07-1990.12 RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12)
Holden Calais VL | 3.0 EFi Turbo 1986.01-1988.08 RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08)
Holden Commodore VL | 3.0 EFi Turbo 1986.01-1988.08 RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08)
Nissan Skyline R31 | 3.0 1985.08-1989.03 RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03)
