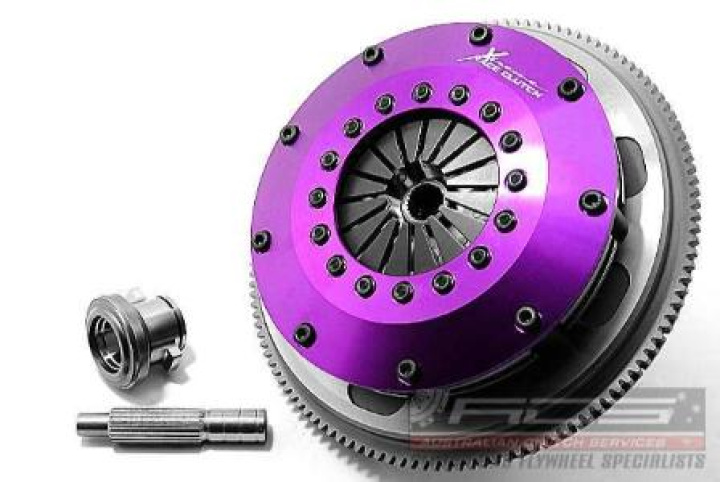

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Nissan Skyline V35 | 3.5 2001.02-2007.12 VQ35DE 3498 Petrol 200 kW 272 BHP (2001.02 - 2007.12)Nissan Skyline V35 | 3.5 2003.01-2006.11 VQ35DE 3498 Petrol 206 kW 280 BHP (2003.01 - 2006.11)
Nissan Skyline V35 | 3.5 4x4 2003.08-2007.08 VQ35DE 3498 Petrol 206 kW 280 BHP (2003.08 - 2007.08)
Nissan 350Z 3.5 (Z33) 2003.10-2007.12 VQ35DE 3498 Petrol 206 kW 280 BHP (2003.10 - 2007.12)
Nissan 350Z 3.5 (Z33) 2002.09-2008.12 VQ35DE 3498 Petrol 221 kW 301 BHP (2002.09 - 2008.12)
