Xtreme Motorsport 200mm twin plate

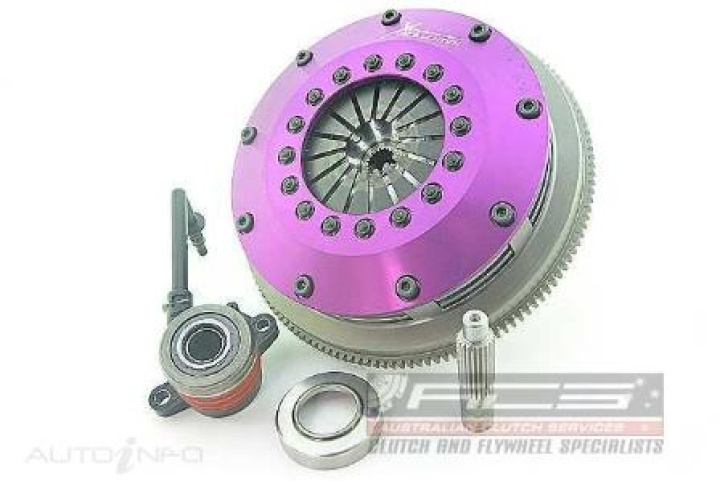

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Nissan Juke 1.6 DIG-T 2010.06-2019.12 MR16DDT 1618 Petrol 140 kW 190 BHP (2010.06 - 2019.12)Nissan Juke 1.6 DIG-T 4x4 2010.06-2019.12 MR16DDT 1618 Petrol 140 kW 190 BHP (2010.06 - 2019.12)
Nissan Tiida 1.6 2013.02-2023 MR16DDT 1618 Petrol 140 kW 190 BHP (2013.02 - 2023)
Nissan Juke 1.6 2013.03-2019.12 MR16DDT 1618 Petrol 140 kW 190 BHP (2013.03 - 2019.12)
Nissan Silvia S110 | 1.8 2014.06-2022 MR20DD 1997 Petrol 106 kW 144 BHP (2014.06 - 2022)
Nissan X-trail T32 | 2.0 2014.09-2022 MR20DD 1997 Petrol 106 kW 144 BHP (2014.09 - 2022)
