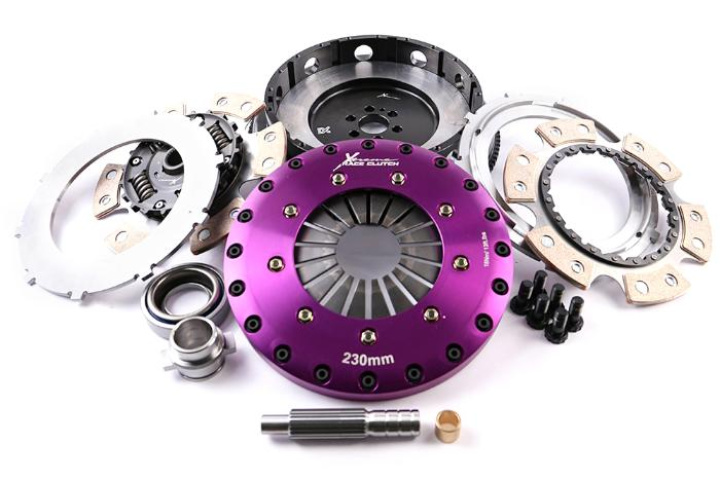

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Nissan Skyline R32 | 2.0 1990.01-1993.01 RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01)Nissan Skyline R32 | 2.0 Turbo 1989.03-1993.06 RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan Skyline R32 | 2.0 Turbo 4x4 1989.03-1993.06 RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan Skyline R32 | 2.0 1990.01-1993.01 RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan Skyline R32 | 2.0 AWD 1990.01-1993.01 RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan Skyline R32 | 2.5 1989.03-1993.06 RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06)
Nissan Skyline R33 | 2.5 1993.07-1998.05 RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan Skyline R33 | 2.5 4x4 1993.07-1998.05 RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan Skyline R34 | 2.5 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan Skyline R34 | 2.5 4x4 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan Skyline R33 | 2.5 1994.01-2000.07 RB25DET 2498 Petrol 184 kW 250 BHP (1994.01 - 2000.07)
Nissan Skyline R32 | 2.6 Twin Turbo 4x4 1989.04-1993.06 RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
Holden Calais VL | 3.0 EFi 1986.03-1988.09 RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Holden Commodore VL | 3.0 EFi 1986.03-1988.09 RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Nissan Skyline R31 | 3.0 1986.07-1990.12 RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12)
Holden Calais VL | 3.0 EFi Turbo 1986.01-1988.08 RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08)
Holden Commodore VL | 3.0 EFi Turbo 1986.01-1988.08 RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08)
Nissan Patrol Y60 | 3.0 4WD 1990.01-1997.12 RB30S 2962 Petrol 100 kW 136 BHP (1990.01 - 1997.12)
Nissan Skyline R31 | 3.0 1985.08-1989.03 RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03)
