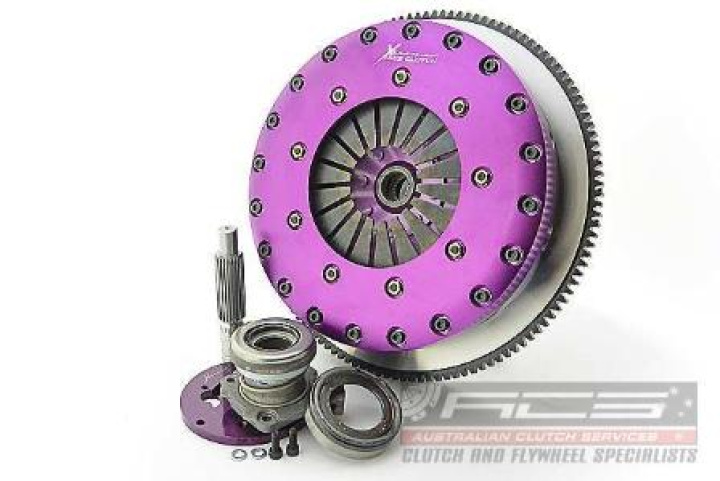

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Nissan 350Z 3.5 (Z33) 2005.09-2009.12 VQ35HR 3498 Petrol 230 kW 313 BHP (2005.09 - 2009.12)Nissan Skyline V36 | 370GT (KV36) 2008.12-2014.12 VQ37VHR 3696 Petrol 243 kW 330 BHP (2008.12 - 2014.12)
Nissan Skyline V36 | 370GT 4x4 2008.12-2014.12 VQ37VHR 3696 Petrol 243 kW 330 BHP (2008.12 - 2014.12)
Nissan 370Z 3.7 (Z34) 2009.06-2020 VQ37VHR 3696 Petrol 243 kW 330 BHP (2009.06 - 2020)
Nissan Skyline (_J50) | 370GT (J50) 2009.07-2016 VQ37VHR 3696 Petrol 243 kW 330 BHP (2009.07 - 2016)
Nissan Skyline (_J50) | 370GT FOUR (NJ50) 2009.07-2016 VQ37VHR 3696 Petrol 243 kW 330 BHP (2009.07 - 2016)
Nissan Skyline V36 | 370GT 2007.10-2015.03 VQ37VHR 3696 Petrol 245 kW 333 BHP (2007.10 - 2015.03)
Nissan 370Z 3.7 (Z34) 2013.04-2020 VQ37VHR 3696 Petrol 245 kW 333 BHP (2013.04 - 2020)
Nissan 370Z 3.7 NISMO (Z34) 2013.01-2020 VQ37VHR 3696 Petrol 245 kW 344 BHP (2013.01 - 2020)
Nissan 370Z 3.7 (Z34) 2009.04-2020 VQ37VHR 3696 Petrol 248 kW 328 BHP (2009.04 - 2020)
