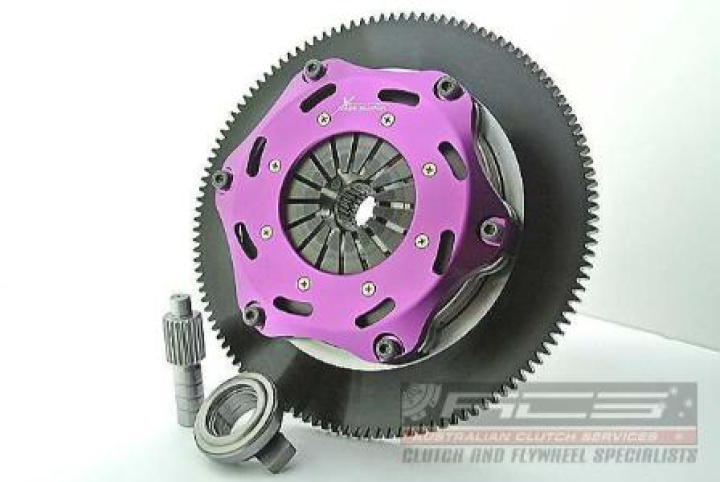

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Toyota Celica 2.0 4WD (ST185) 1989.10-1993.11 3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11)Toyota Celica 2.0 4WD (ST185) 1989.10-1994.01 3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01)
Toyota Celica 2.0 4WD (ST185) 1989.10-1993.09 3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09)
Toyota MR2 Gen. II | 2.0 (SW20) 1989.12-1999.07 3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07)
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07)
Toyota Celica 2.0 i Turbo 4WD (ST205) 1994.02-1999.11 3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11)
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07)
Toyota Caldina 2.0 4WD (ST215W_) 2000.02-2001.09 3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09)
