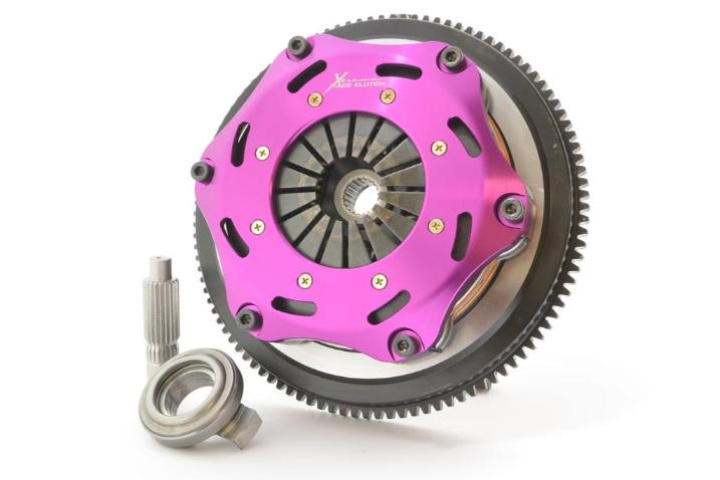

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Toyota Starlet 1.5 D (NP70L) 1986.12-1989.12 1N 1453 Diesel 40 kW 54 BHP (1986.12 - 1989.12)Toyota Corolla 1.3 i (EE90) 1987.08-1992.04 2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04)
Toyota MR2 Gen. I | 1.6 16V (AW11) 1984.11-1990.06 4A-GEL 1587 Petrol 91 kW 124 BHP (1984.11 - 1990.06)
Toyota MR2 Gen. I | 1.6 16V (AW11) 1984.06-1989.11 4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11)
Toyota MR2 Gen. I | 1.6 (AW11) 1984.11-1989.12 4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12)
Toyota MR2 Gen. I | 1.6 16V (AW11) 1984.11-1990.06 4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06)
Toyota Corolla 1.6 (AE82) 1983.06-1987.08 4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08)
Toyota Corolla 1.6 (AE82) 1985.08-1987.08 4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 - 1987.08)
Toyota Carina 1.6 (AT151_) 1983.10-1987.11 4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11)
