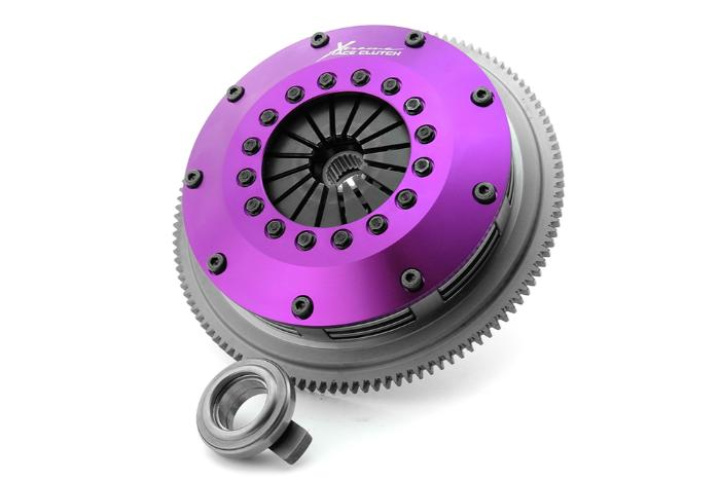

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Toyota Celica 2.0 4WD (ST185) 1989.10-1993.11 3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11)Toyota Celica 2.0 4WD (ST185) 1989.10-1994.01 3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01)
Toyota Celica 2.0 4WD (ST185) 1989.10-1993.09 3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09)
Toyota MR2 Gen. II | 2.0 (SW20) 1989.12-1999.07 3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07)
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07)
Toyota Celica 2.0 i Turbo 4WD (ST205) 1994.02-1999.11 3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11)
Toyota MR2 Gen. II | 2.0 Turbo (SW20_) 1989.12-1999.07 3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07)
Toyota Caldina 2.0 4WD (ST215W_) 2000.02-2001.09 3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09)
