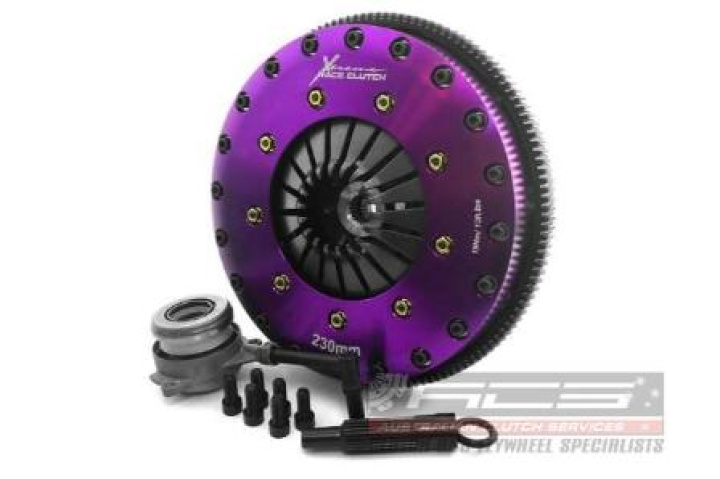

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Volkswagen Golf Gen. V | 2.0 GTI 2004.10-2009.02 AXX, BWA, BPY, CAWB, CCTA, CBFA 1984 Petrol 147 kW 200 BHP (2004.10 - 2009.02)Volkswagen Jetta 2.0 TFSI (1K2) 2005.10-2010.10 AXX, BWA, BPY, CAWB, CCTA, CBFA 1984 Petrol 147 kW 200 BHP (2005.10 - 2010.10)
Volkswagen Passat B6 | 2.0 TFSI 2005.07-2010.07 AXX, BWA, BPY, CAWB, CCTA, CBFA, CCZA 1984 Petrol 147 kW 200 BHP (2005.07 - 2010.07)
Audi A3 8P | 2.0 TFSI 2004.09-2009 AXX, BWA, BPY, CAWB, CCZA, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2004.09 - 2009)
Audi A3 8P | 2.0 TFSI Quattro 2004.09-2006 AXX, BWA, BPY, CCZA, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2004.09 - 2006)
Audi A3 8P | 2.0 TFSI 2004.09-2009 AXX, BWA, CAWB, CCZA 1984 Petrol 147 kW 200 BHP (2004.09 - 2009)
Audi A3 8P | 2.0 TFSI Quattro 2004.09-2006 AXX, BWA, CCZA, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2004.09 - 2006)
Audi A3 8P | 2.0 TDI Quattro 2003.05-2008.06 AZV 1968 Diesel 100 kW 136 BHP (2003.05 - 2008.06)
Audi A3 8P | S3 Quattro 2006.11-2012.08 BHZ, CDLA 1984 Petrol 195 kW 265 BHP (2006.11 - 2012.08)
Audi A3 8P | S3 Quattro 2008.06-2013.03 BHZ, CDLA 1984 Petrol 195 kW 265 BHP (2008.06 - 2013.03)
Volkswagen Golf Gen. V | 1.9 TDI 4motion 2004.08-2008.11 BKC, BLS, BXE 1896 Diesel 77 kW 105 BHP (2004.08 - 2008.11)
Volkswagen Golf Gen. V | 2.0 TDI 16V 4motion 2004.08-2008.11 BKD 1968 Diesel 103 kW 140 BHP (2004.08 - 2008.11)
Audi A3 8P | 2.0 TDI 16V Quattro 2004.08-2012.08 BKD, CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2004.08 - 2012.08)
Audi A3 8P | 2.0 TDI 16V Quattro 2005.11-2013.03 BKD, CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2005.11 - 2013.03)
Volkswagen Passat B6 | 2.0 TDI 16V 4motion 2005.03-2010.08 BKP, CBAB 1968 Diesel 103 kW 140 BHP (2005.03 - 2010.08)
Volkswagen Caddy Gen. III | 1.9 TDI 4motion 2008.11-2010.08 BLS 1896 Diesel 77 kW 105 BHP (2008.11 - 2010.08)
Audi A3 8P | 2.0 TDI Quattro 2006.01-2008.06 BMM 1968 Diesel 103 kW 140 BHP (2006.01 - 2008.06)
Volkswagen Golf Gen. V | 2.0 TDI 4motion 2007.01-2008.11 BMM 1968 Diesel 103 kW 140 BHP (2007.01 - 2008.11)
Audi A3 8P | 2.0 TDI Quattro 2006.03-2012.08 BMN, CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2006.03 - 2012.08)
Audi A3 8P | 2.0 TDI Quattro 2006.03-2013.03 BMN, CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2006.03 - 2013.03)
Volkswagen Passat B6 | 2.0 TDI 4motion 2005.03-2009.05 BMP 1968 Diesel 103 kW 140 BHP (2005.03 - 2009.05)
Seat Leon Gen. II | 2.0 TFSI 2005.09-2006.05 BWA 1984 Petrol 136 kW 185 BHP (2005.09 - 2006.05)
Seat Leon Gen. II | 2.0 TFSI 2005.05-2009.03 BWA 1984 Petrol 147 kW 200 BHP (2005.05 - 2009.03)
Seat Toledo Gen. III | 2.0 TFSI 2005.11-2009.05 BWA 1984 Petrol 147 kW 200 BHP (2005.11 - 2009.05)
Volkswagen Eos 2.0 TFSI 2006.03-2008 BWA, BPY, CAWB, CCTA, CBFA, CCZA 1984 Petrol 147 kW 200 BHP (2006.03 - 2008)
Audi TT 8J | 2.0 TFSI 2006.08-2010.06 BWA, BPY, CCTA 1984 Petrol 147 kW 200 BHP (2006.08 - 2010.06)
Audi TT 8J | 2.0 TFSI 2007.03-2010.06 BWA, BPY, CCTA 1984 Petrol 147 kW 200 BHP (2007.03 - 2010.06)
Volkswagen Golf Gen. V | 2.0 TFSI 2007.06-2009.07 BWA, CAWB, CCTA, CBFA 1984 Petrol 147 kW 200 BHP (2007.06 - 2009.07)
Seat Leon Gen. II | 2.0 TFSI 2006.11-2011.05 BWJ, CDLD 1984 Petrol 177 kW 240 BHP (2006.11 - 2011.05)
Volkswagen Golf Gen. V | 2.0 GTI 2006.09-2008.12 BYD 1984 Petrol 169 kW 230 BHP (2006.09 - 2008.12)
Audi A3 8P | S3 Quattro 2007.02-2012.08 BZC, CDLC 1984 Petrol 188 kW 256 BHP (2007.02 - 2012.08)
Volkswagen Golf Gen. VI | 1.6 TDI 4motion 2009.07-2013.07 CAYC 1598 Diesel 77 kW 105 BHP (2009.07 - 2013.07)
Volkswagen Golf Gen. VI | 2.0 TDI 4motion 2009.05-2012.11 CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2009.05 - 2012.11)
Volkswagen Passat CC B6 | 2.0 TDI 4motion 2009.08-2012.01 CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2009.08 - 2012.01)
Volkswagen Tiguan 2.0 TDI 4motion (5N_) 2007.09-2018.07 CBAB, CFFB, CLJA 1968 Diesel 103 kW 140 BHP (2007.09 - 2018.07)
Volkswagen Passat B6 | 2.0 BlueTDI 2009.01-2010.11 CBAC 1968 Diesel 105 kW 143 BHP (2009.01 - 2010.11)
Audi TT 8J | 2.0 TDI Quattro 2008.06-2014.06 CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2008.06 - 2014.06)
Volkswagen Passat CC B6 | 2.0 TDI 4motion 2009.11-2012.01 CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2009.11 - 2012.01)
Seat Leon Gen. II | 2.0 Cupra R 2009.09-2012.12 CDLA 1984 Petrol 195 kW 265 BHP (2009.09 - 2012.12)
Volkswagen Golf Gen. VI | 2.0 R 4motion 2009.11-2011.05 CDLA 1984 Petrol 195 kW 265 BHP (2009.11 - 2011.05)
Volkswagen Scirocco 2.0 R 2009.11-2017.11 CDLA 1984 Petrol 195 kW 265 BHP (2009.11 - 2017.11)
Audi TT 8J | 2.0 TTS Quattro 2008.05-2014.06 CDLA, CDMA 1984 Petrol 195 kW 265 BHP (2008.05 - 2014.06)
Audi TT 8J | 2.0 TTS Quattro 2008.05-2014.06 CDLB 1984 Petrol 200 kW 272 BHP (2008.05 - 2014.06)
Audi A3 8P | S3 Quattro 2008.07-2013.03 CDLC 1984 Petrol 188 kW 256 BHP (2008.07 - 2013.03)
Volkswagen Scirocco 2.0 R 2009.11-2017.11 CDLC 1984 Petrol 188 kW 256 BHP (2009.11 - 2017.11)
Volkswagen Golf Gen. VI | 2.0 R 4motion 2009.11-2013.11 CDLC, CRZA 1984 Petrol 188 kW 256 BHP (2009.11 - 2013.11)
Volkswagen Golf Gen. VI | 2.0 R 4motion 2009.11-2012.11 CDLF 1984 Petrol 199 kW 270 BHP (2009.11 - 2012.11)
Volkswagen Passat B7 | 2.0 TDI 4motion 2010.08-2014.12 CFFB 1968 Diesel 103 kW 140 BHP (2010.08 - 2014.12)
Volkswagen Passat B7 | 2.0 TDI 4motion 2012.01-2014.12 CFFB 1968 Diesel 103 kW 140 BHP (2012.01 - 2014.12)
Volkswagen Caddy Gen. III | 2.0 TDI 16V 4motion 2010.11-2015.05 CFHC 1968 Diesel 103 kW 140 BHP (2010.11 - 2015.05)
Volkswagen Caddy Gen. III | 2.0 TDI 4motion 2010.12-2015.05 CFHE 1968 Diesel 62 kW 85 BHP (2010.12 - 2015.05)
Volkswagen Caddy Gen. III | 2.0 TDI 4motion 2010.08-2015.05 CFHF 1968 Diesel 81 kW 110 BHP (2010.08 - 2015.05)
Volkswagen Caddy Gen. IV | 2.0 TDI 4motion 2015.05-2020.09 CFHF, CLCA 1968 Diesel 81 kW 110 BHP (2015.05 - 2020.09)
Dodge Journey 2.0 CRD 2008.06-2011.12 ECE 1968 Diesel 100 kW 136 BHP (2008.06 - 2011.12)
