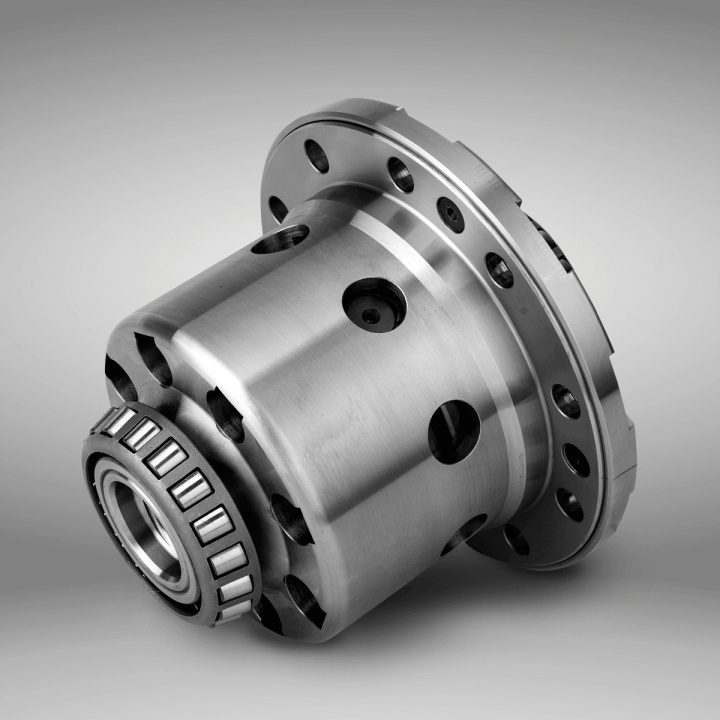

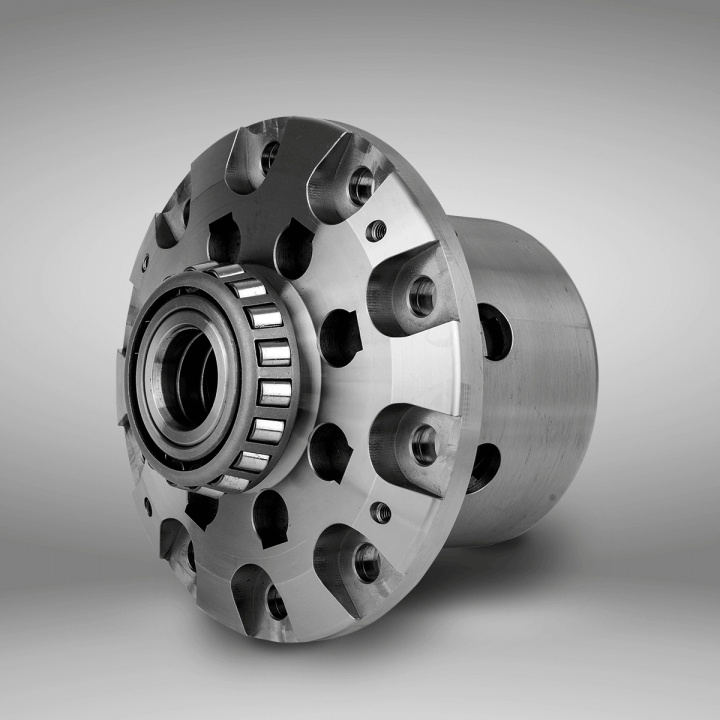

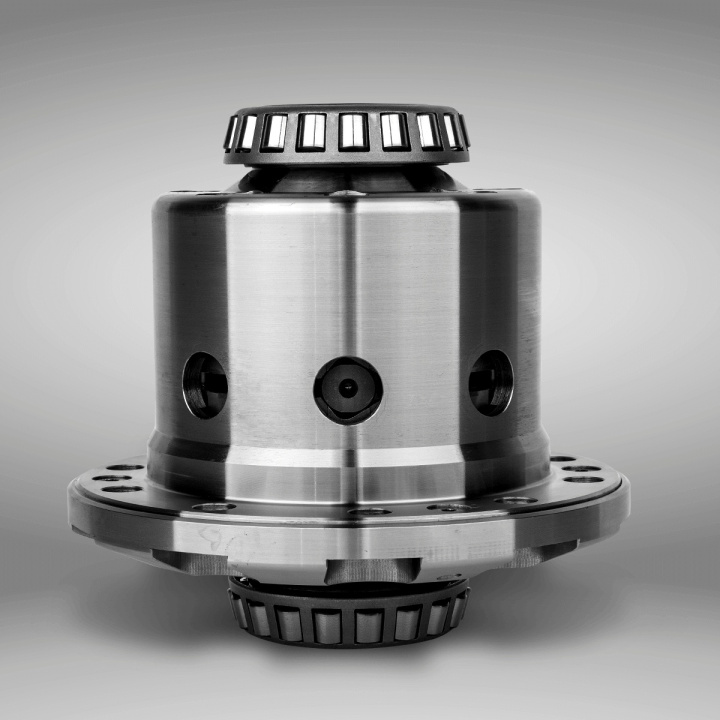

Nissan Skyline HNR32 / HR33 HR34 / ER33 ER34 / ENR33 ENR 34 / ECR33 / – Silvia S14 ( 97-98) / S15 KAAZ LSD Diff 2-Vägs

Skyline HNR32 / HR33 HR34 / ER33 ER34 / ENR33 ENR 34 / ECR33 / – Silvia S14 ( 97-98) / S15 – LSD 2 Way

• 20 Plates for medium to high power levels
• 2 way
• 30 Spline
• Rear Differential
• Fits cars equipped with factory LSD option
• Rear carrier bearings pressed on
• Rear cover gasket and axle oil seals included
• 2L Gear oil included
• Super Q option available

*This is for a 30 Spline Axle Flange.  For 29 Spline Kouki S14 use part# SAN2635  – Late model S14 please be sure to check spline count before ordering.

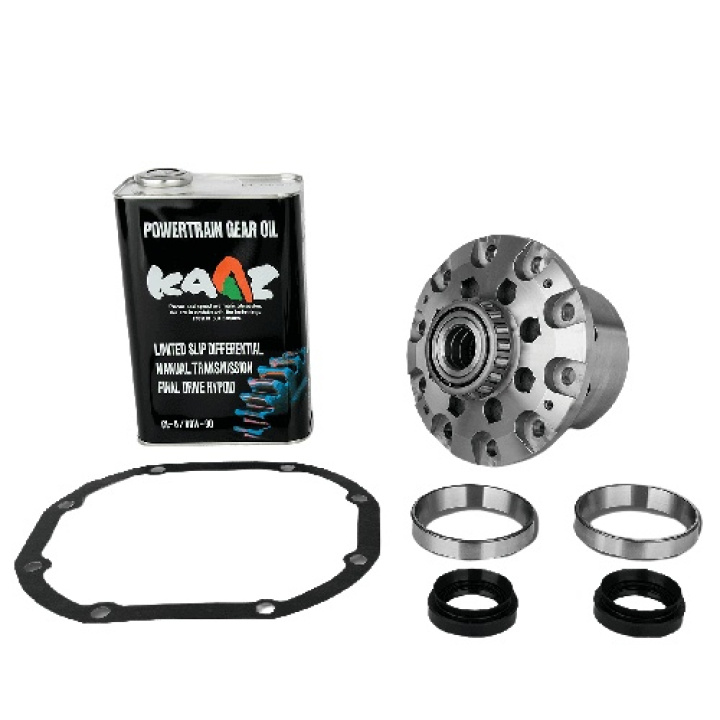

* Included- Rear carrier bearings pressed on, Rear cover gasket, Axle oil seals and 2L Gear oil.

2.0-way LSD

Favored especially in drifting, a 2.0-way LSD delivers the same lockup characteristics under both acceleration and deceleration. Although this setup isnt forgiving for street driving, it is preferred for drifting as it eases the cars ability to break traction under braking.

SuperQ (WPC treatment)

Every Kaaz limited-slip differential is offered in a SuperQ variant. SuperQ units feature reduced chattering and smoother engagement for an enhanced driving experience. With the help of WPC metal treatment, SuperQ limited-slip differentials also come with better heat dissipation and longer wear life with no break-in process required. Just like all of Kaazs limited-slip differentials, SuperQ units allow for locking rate adjustments.

Technical Information

KAAZ differentials are designed and engineered to be used in competition motorsports. They are supplied from the factory to react quickly and strongly when it reaches the ex-factory preload (100% Locking). This is ideal for smooth, dry tarmac circuit use.

For some drivers/ conditions, a “softer” setting may be required. There are several ways this can be achieved, but the general option is by reducing the amount of friction surfaces. By re-arranging the order of the plates, various options are available depending on the total number of plates in the differential.

The diagram below shows the stacking option for your application. The differential has the same number of plates on both sides and the plate configuration MUST be the same on both. Below shows just one side.

*The original quantity of plates must be retained, as well as the Belleville (cone) spring washer(s)

This part number fits the following applications:
