Xtreme Motorsport 200mm twin plate

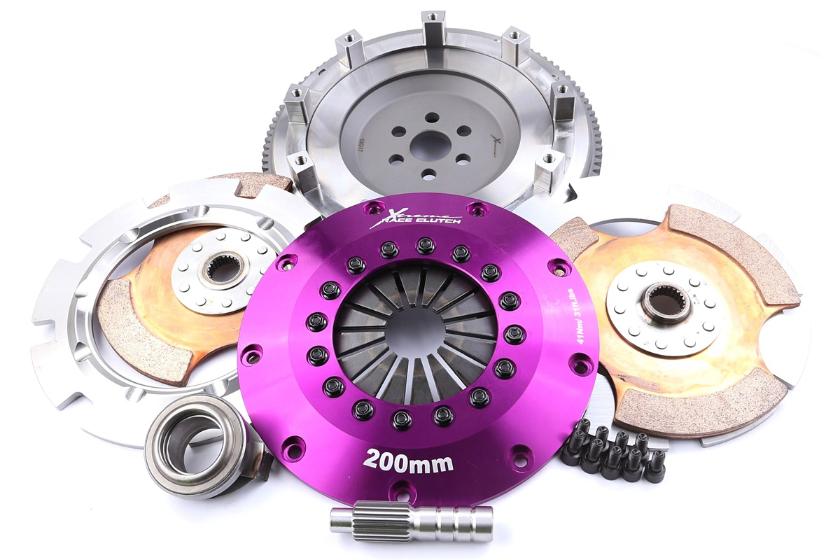

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Passar till:
- Mazda 323 1.8 16V Turbo 4WD (BG8S) 1990.09-1992.12 BP Turbo 1840 Petrol 120 kW 163 BHP (1990.09 - 1992.12)Mazda 323 1.8 16V 4WD (BG8S) 1989.08-1994.05 BP Turbo 1840 Petrol 132 kW 179 BHP (1989.08 - 1994.05)
Mazda 323 1.8 16V Turbo 4WD (BG8S) 1993.01-1994.07 BP Turbo 1840 Petrol 136 kW 185 BHP (1993.01 - 1994.07)
Mazda 323 1.8 GT-R 4WD (BG8S) 1992.01-1994.05 BP Turbo 1840 Petrol 154 kW 209 BHP (1992.01 - 1994.05)
