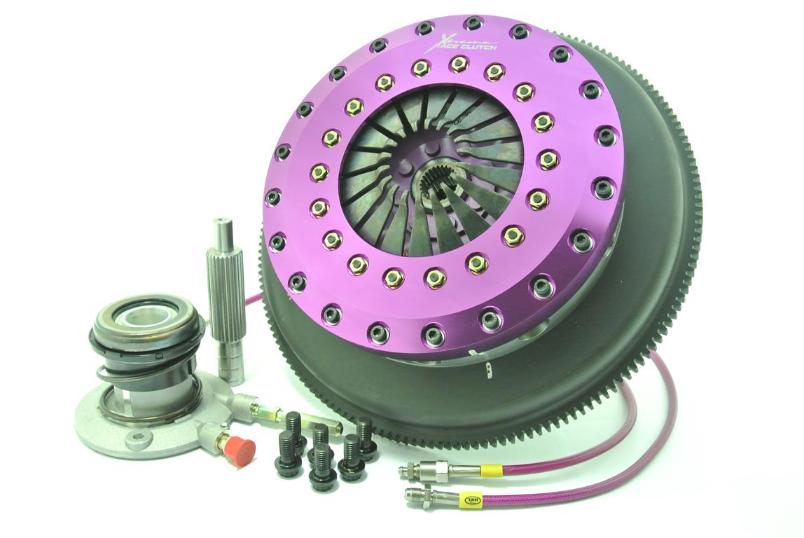

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Holden H Series VE | 6.0i V8 2006.07-2013.05 L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)Holden H Series VE | 6.0 Flex 2010.09-2013.04 L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden H Series VF | 6.0i V8 SS. SS-V 2013.05-2015.09 L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2013.05 - 2015.09)
Holden H Series VF | 6.0i V8 2013.06-2015.09 L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2013.06 - 2015.09)
Holden H Series VF | 6.0i SS. SS-V 2013.05-2015.09 L77(364CUV8) 5967 Petrol 270 kW 367 BHP (2013.05 - 2015.09)
Holden H Series VE | 6.0i V8 2006.07-2013.05 L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden H Series VE | 6.0i V8 2006.08-2013.05 L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV Clubsport VF | 6.2i V8 2013.05-2015.08 LS3 6162 Petrol 340 kW 462 BHP (2013.05 - 2015.08)
Holden H Series VF | 6.2i SS. SS-V 2015.09-2017.10 LS3(376CUV8) 6162 Petrol 304 kW 413 BHP (2015.09 - 2017.10)
Holden H Series VF | 6.2i V8 2015.09-2017.10 LS3(376CUV8) 6162 Petrol 304 kW 413 BHP (2015.09 - 2017.10)
Vauxhall VXR8 Maloo 6.2 2008.04-2011.08 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
HSV Clubsport VE | 6.2i V8 2008.04-2013.05 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV Maloo VE | 6.2i V8 2008.04-2013.05 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV Senator VE | 6.2i V8 2008.04-2013.05 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV Clubsport VF | 6.2i V8 2013.05-2014.10 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2013.05 - 2014.10)
HSV Maloo VF | 6.2i V8 2013.05-2014.10 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2013.05 - 2014.10)
HSV GTS VE | 6.2i V8 2010.10-2013.05 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2010.10 - 2013.05)
HSV Clubsport VE | 6.2 R8 2012.02-2013.05 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2012.02 - 2013.05)
HSV Senator VE | 6.2i V8 2012.08-2013.04 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2012.08 - 2013.04)
HSV Clubsport VE | 6.2 R8 LPG 2012.08-2013.05 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2012.08 - 2013.05)
HSV Clubsport VF | 6.2i V8 2013.05-2014.10 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2013.05 - 2014.10)
HSV Maloo VF | 6.2i V8 2013.05-2014.10 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2013.05 - 2014.10)
HSV Clubsport VF | 6.2i V8 2013.06-2015.08 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2013.06 - 2015.08)
HSV Senator VF | 6.2i V8 2013.05-2015.08 LS3(376CUV8) 6162 Petrol 340 kW 462 BHP (2013.05 - 2015.08)
HSV Maloo VF | 6.2i V8 2013.05-2016.12 LS3(376CUV8) 6162 Petrol 340 kW 462 BHP (2013.05 - 2016.12)
